H1 EMA/SMA + Higher Timeframe Analysis (Classic) V1.0 by SRT

# H1 EMA/SMA + Higher Timeframe Analysis (Classic) V1.0 by SRT

## Overview

H1 EMA/SMA + Higher Timeframe Analysis (Classic) V1.0 by SRT is a complete market context indicator designed to help traders read trend, structure and execution quality from a single chart.

Instead of relying on one indicator alone, this script combines multiple layers of market information into one unified framework:

• H1 Moving Average Bias Engine
• Higher Timeframe (H4 & Daily) Trend Confirmation
• Ladder Market Structure Analysis
• Dynamic Daily & Weekly Pivot Levels
• VWAP Bias Filter
• Engulfing & Long Tail Bar (LTB) Detection
• RSI Breakout & Retracement Alerts
• Composite Bias Dashboard
• Smart Alert System

The objective is simple:

Reduce subjectivity by helping traders identify when multiple independent factors agree before looking for trade opportunities.

This indicator is designed for traders who prefer trading with trend and market structure rather than relying on a single crossover or oscillator.

---

## Main Features

### ① H1 Bias Engine

The H1 Bias Engine evaluates the alignment of up to four configurable EMA/SMA lines.

Unlike traditional MA crossover indicators, this engine considers:

• Moving average order
• Price position relative to the moving averages
• MA spacing quality
• Trend strength

Bias is classified into:

• Strong Bullish
• Bullish
• Neutral
• Bearish
• Strong Bearish

An ATR-based spacing filter automatically ignores signals when moving averages become compressed, helping reduce false trend readings during consolidation.

---

### ② Higher Timeframe Bias

The script automatically evaluates both:

• H4 Trend
• Daily Trend

using a dedicated EMA40 / EMA150 / SMA200 structure.

These two higher timeframes are combined into a Higher Timeframe (HTF) Bias.

This allows traders to quickly determine whether H1 signals are aligned with the broader market direction.

---

### ③ Ladder Market Structure

The Ladder System measures how support and resistance levels evolve over multiple lookback windows.

Support Levels

S9
S40
S70
S100
S150

Resistance Levels

R9
R40
R70
R100
R150

The relative positioning of these levels produces a Ladder Bias ranging from:

Strong Bullish

Bullish

Neutral

Bearish

Strong Bearish

This provides an additional market structure confirmation independent of moving averages.

---

### ④ Composite H1TF Bias

One of the core components of the indicator.

H1TF combines:

• H1 Moving Average Bias
• Ladder Bias

to generate a stronger consensus trend.

Rather than reacting to a single condition, H1TF requires agreement between trend and structure before producing stronger directional confidence.

---

### ⑤ Final Verdict Engine

The Final Verdict combines:

Higher Timeframe Bias

*

H1TF Composite Bias

Only when both higher timeframe trend and H1 composite trend strongly agree will the dashboard produce:

Strong Bullish

or

Strong Bearish

This helps traders focus on higher probability market conditions instead of reacting to every market fluctuation.

---

### ⑥ Key Bar Detection

The indicator automatically detects two important price action patterns.

Bullish / Bearish Engulfing Bars

Long Tail Bars (LTB)

Each signal includes:

ATR size validation

Minimum body filters

Tail quality checks

Momentum confirmation

These are designed to highlight significant candles instead of every basic engulfing or pin bar.

---

### ⑦ Daily & Weekly Pivot Levels

Built-in pivot calculations include:

Daily Pivot (DP)

Weekly Pivot (WP)

These levels provide additional context for potential support, resistance and reaction zones.

---

### ⑧ VWAP Bias

The indicator includes a built-in VWAP filter.

Price above VWAP

Bullish

Price below VWAP

Bearish

This offers another layer of institutional-style market context that complements the moving average analysis.

---

### ⑨ RSI Momentum Alerts

Four RSI-based alerts are included.

Bullish RSI Breakout

Bearish RSI Breakout

Bullish RSI Retracement

Bearish RSI Retracement

These alerts are designed to identify momentum expansion as well as potential continuation opportunities after retracements.

---

### ⑩ Smart Alert System

The alert engine supports multiple event types.

H1 Bias changes

Higher Timeframe Bias changes

H1TF Composite changes

Ladder Bias changes

Bullish Engulfing

Bearish Engulfing

Bullish Long Tail Bar

Bearish Long Tail Bar

Optional filters allow alerts to trigger only when aligned with:

H1TF

Higher Timeframe

Strong Bias only

This helps reduce unnecessary alert noise.

---

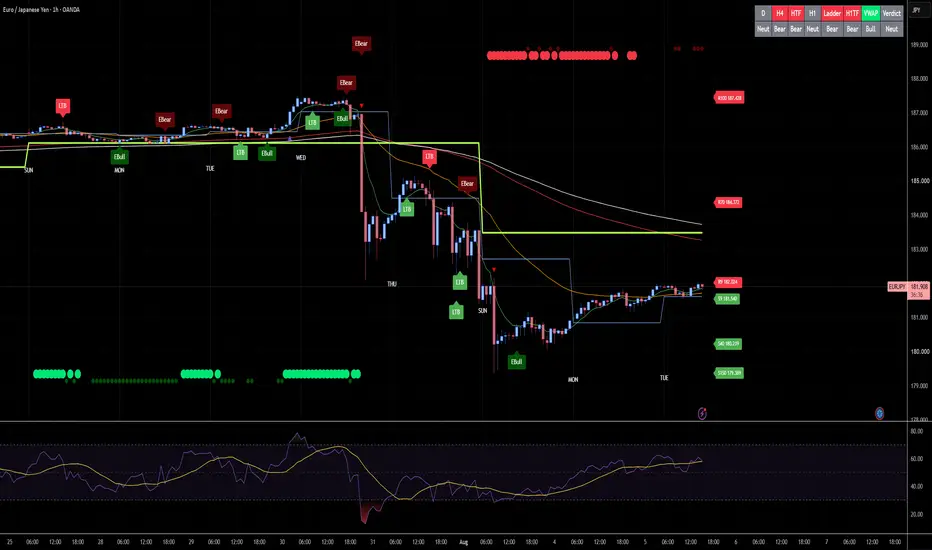

## Reading the Bias Dashboard

The dashboard summarizes the complete market picture.

Daily

Daily Trend

H4

H4 Trend

HTF

Combined Higher Timeframe Trend

H1

Current H1 Moving Average Bias

Ladder

Market Structure Bias

H1TF

Combined H1 Trend

VWAP

Current VWAP Position

Verdict

Final Consensus

The strongest trading environments generally occur when multiple components point in the same direction.

---

## Typical Workflow

A simple workflow may look like this:

1. Check the Final Verdict.

2. Confirm H1TF agrees with the Higher Timeframe.

3. Observe whether VWAP supports the direction.

4. Wait for a qualifying Engulfing Bar or Long Tail Bar.

5. Use Daily Pivot, Weekly Pivot and Ladder levels for trade management.

This approach encourages waiting for confluence rather than entering solely because one indicator changes direction.

---

## Notes

This indicator is intended as a market context and decision-support tool.

It does not predict future prices and should not be considered a standalone trading system.

Like any technical tool, it performs best when combined with sound risk management, proper trade planning and disciplined execution.

---

Thank you for using H1 EMA/SMA + Higher Timeframe Analysis (Classic) V1.0 by SRT

I hope this indicator helps simplify chart analysis and encourages traders to focus on market structure, trend alignment and disciplined decision making.

— SRT
