Next Candle Predictor V4.1## Next Candle Predictor V4.1 — Terminology and Presentation Update
This update improves the clarity of the indicator's terminology and on-chart presentation while preserving its existing calculation framework, weighting structure, visual layout, and signal conditions.
### Changes
- Renamed displayed “Prediction” values to “Directional Score”.
- Replaced “Perfect Time” with “Strong Setup”.
- Renamed the volume-derived component to “Estimated Volume Pressure”.
- Renamed projection visuals to “Directional Scenario Candles”.
- Updated dashboard labels and alert messages for clearer interpretation.
- Removed performance-target wording.
- Added author attribution: Developed by Ceyhun C. Canbazoglu.
### Score Interpretation
The displayed long and short percentages are normalized directional confluence scores derived from the indicator’s rule-based components.
They are not statistical probabilities, expected win rates, guarantees, or forecasts of the next candle’s result.
### Estimated Volume Pressure
Estimated Volume Pressure uses OHLCV data and the closing price’s position within the candle range to estimate directional pressure.
It is not exchange-level bid/ask volume delta or actual aggressive buying and selling volume.
### Directional Scenario Candles
The optional scenario candles are volatility-scaled visualizations based on the indicator’s current directional scores.
They do not forecast the next candle’s exact open, high, low, close, direction, or price target.
### Core Framework
The existing multi-factor framework remains unchanged and continues to evaluate:
- trend direction,
- EMA alignment,
- MACD momentum,
- RSI position,
- Stochastic conditions,
- ADX trend strength,
- relative volume,
- estimated volume pressure,
- and volatility regime.
This indicator is intended as a technical-analysis and decision-support tool. It does not provide financial advice or guarantee trading results. Indicateur
Indicateur

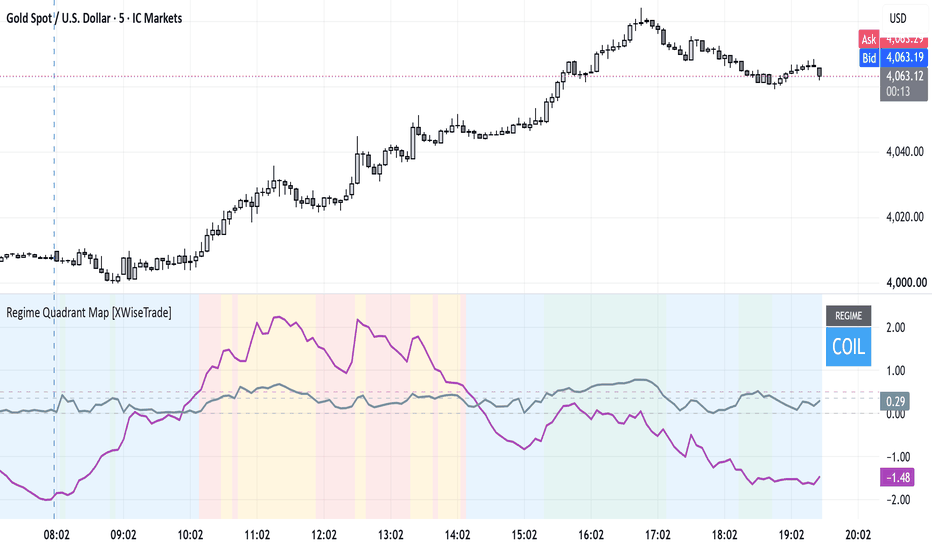

Regime Quadrant Map [XWiseTrade]Regime Quadrant Map
Part of the XWiseTrade Quant Suite. Follow so you don't miss the next one.
Most "regime" indicators sort the market into two boxes: trending or ranging. But that single axis hides the variable that actually decides whether a trend is tradeable — volatility. A market drifting up in dead-calm conditions and a market ripping up in violent conditions are both "trending," yet they demand opposite tactics. Collapsing them into one label is why so many trend filters fail exactly when you lean on them. This indicator separates the two questions that a one-dimensional filter fuses together, and maps the result onto four regimes instead of two.
Why volatility is measured as an ATR Z-score, not raw ATR
Raw ATR tells you nothing on its own — an ATR of 15 is enormous on one instrument and trivial on another, and huge in one era and small in the next. What matters is whether volatility is unusually high or low relative to this market's own recent behaviour. So ATR here is ranked against its own distribution over a lookback window and expressed as a Z-score: how many standard deviations above or below its own norm current volatility sits. That makes the reading self-referential and comparable across any symbol or timeframe, instead of an absolute number you'd have to re-learn for every chart.
Why trend is measured with Efficiency Ratio, not a moving-average slope
A rising moving average tells you price is higher than it was — it does not tell you how price got there. Efficiency Ratio does: it divides the net directional move by the total distance price actually travelled to make it. A value near 1 means a clean, purposeful move; near 0 means price thrashed back and forth to end up in nearly the same place. Two charts with an identical slope can have completely different efficiency, and that difference — not the slope — is what separates a trend you can ride from a trap. Slope measures result; Efficiency Ratio measures quality.
The four quadrants
Crossing the two axes gives four regimes, each with a distinct character:
GRIND (trending + low volatility) — a steady, efficient directional move; the kind you can lean into.
EXPANSION (trending + high volatility) — a violent directional move; momentum conditions, wider risk.
COIL (ranging + low volatility) — compression; energy building, often ahead of a breakout.
CHOP (ranging + high volatility) — whipsaw with no follow-through; the regime most accounts quietly bleed in.
How to use it
Watch the regime label and background tint for the current quadrant, or read the two plotted lines directly against their dashed thresholds — the ATR Z-score line for the volatility axis, the Efficiency Ratio line for the trend axis. Both thresholds and both lookbacks are adjustable, so you can set what counts as "high volatility" or "trending" for your own instrument and timeframe. An alert fires whenever the market crosses into a new quadrant, so you don't have to watch it to know the regime shifted.
What makes it different
Standard regime tools reduce the market to a single trend-versus-range line and treat volatility as an afterthought. This one builds regime from two independent axes, measures volatility as a self-referential Z-score rather than an absolute number, measures trend by path efficiency rather than slope, and resolves the market into four actionable states instead of two — because "trending" alone was never enough to decide how to trade it.
If this framework is useful, follow to get the rest of the Quant Suite as it drops — each script extends this model into entries, risk, and prop-firm workflows. More tools and write-ups: xwisetrade.com
These are descriptive regime classifications for discretionary use, not buy/sell signals. Indicateur

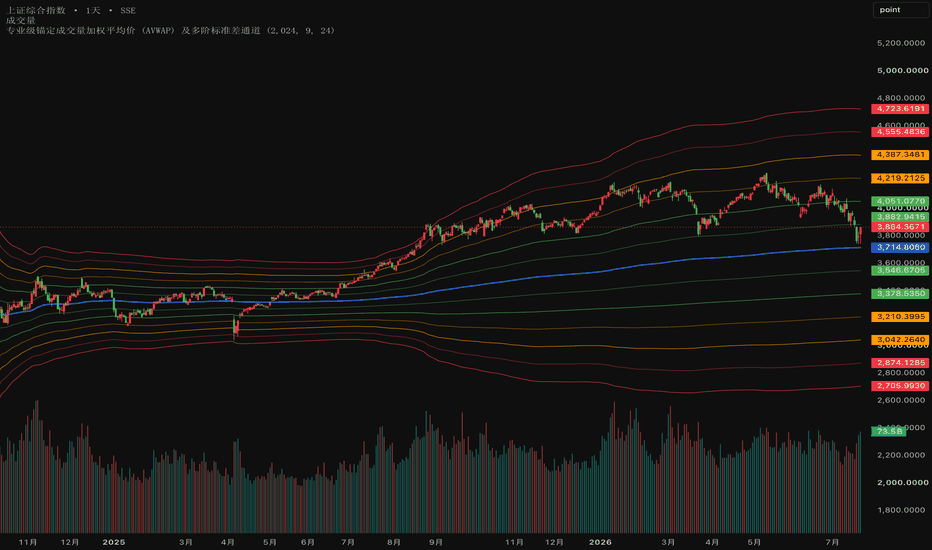

Professional Anchored VWAP with Multi Level Standard Bands
一、指标概述
本指标是一款基于成交量加权的进阶量化分析工具，核心功能是将 VWAP 的计算起点“锚定”到您自行选择的任意历史时间点，并围绕该基准自动生成六级标准差概率通道（±0.5σ、±1.0σ、±1.5σ、±2.0σ、±2.5σ、±3.0σ），形成完整的市场价格分布监测体系。
与每日开盘重置的传统 VWAP 不同，锚定 VWAP 将计算起点固定在某个具有战略意义的时间节点——例如重大宏观事件（FOMC 决议、CPI 发布）、公司基本面事件（财报披露）、技术结构节点（趋势起点、摆动高点/低点、突破点）或任何您认为值得跟踪的时点。这种设计让您能够持续追踪“自该事件发生以来，市场真正的平均成本”，从而更精准地识别机构级支撑阻力、评估趋势健康度、捕捉均值回归机会。
本指标适用于股票、ETF、期货、加密货币等所有具备真实成交量数据的品种，并且可加载于任意时间框架（1分钟、5分钟、日线、周线等）。
二、核心理念与设计逻辑
从每日重置到事件锚定的升级
传统 VWAP 在每个交易日开盘时重新计算，对日内交易者非常实用，但对于持仓数日、数周甚至更长的波段或趋势交易者，每日重置意味着关键历史参考的丢失。AVWAP 通过固定锚点，解决了这一局限，让您能够以特定事件为原点，持续衡量市场参与者的平均成本变化。
从价格位置到统计概率的跃迁
单一的 VWAP 线只能告诉您价格在基准线上方还是下方，而本指标引入“成交量加权标准差”，将价格偏离转化为具有统计意义的概率度量。±1σ 通道覆盖约 68% 的价格分布，定义常态波动区间；±2σ 通道覆盖约 95%，反映显著偏离；±3σ 通道覆盖约 99.7%，触及此区域通常意味着极端情绪定价，均值回归的概率显著升高。这使得价格分析从“高低判断”升级为“价格在统计分布中的位置判断”，为决策提供可量化的概率依据。
三、计算方法简述
AVWAP 的计算采用典型价格（即最高价、最低价、收盘价的算术平均值）与成交量的乘积进行累加，再除以累计成交量，得到自锚点以来的成交量加权平均价格。标准差则基于价格平方与成交量的加权累加，结合方差公式 E(P²)‑E(P)² 计算得出，整个过程仅需单次数据遍历，确保在大时间窗口下的计算效率。各通道带即为 AVWAP 数值加上或减去对应倍数（0.5、1.0、1.5、2.0、2.5、3.0）的标准差值。
四、实战应用指南
趋势方向判断
当价格持续运行于 AVWAP 上方，表明自锚点以来多头占据主导，市场平均成本低于现价，多头持仓整体盈利；反之，价格持续运行于 AVWAP 下方，则空头占据主导。若价格频繁穿越 AVWAP，则市场处于震荡均衡状态。
动态支撑与阻力
AVWAP 线本身是最重要的动态支撑/阻力位。上升趋势中，价格回踩 AVWAP 并获得支撑，往往是趋势延续的信号；下降趋势中，价格反弹至 AVWAP 并遇阻，往往意味着趋势延续。各标准差通道带同样构成次级支撑/阻力区域，可作为分批建仓或止盈的参考位置。
均值回归交易
当价格延伸至外层通道（如 ±2.5σ 或 ±3.0σ）时，价格已显著偏离成交量加权公允值，历史上表现出强烈的回归倾向。触及上轨极端区域可考虑短线做空或获利了结；触及下轨极端区域可考虑短线做多或回补仓位。需注意，在强单边趋势中，价格可能在极端区域停留较长时间，建议结合其他趋势指标进行过滤。
趋势延续确认
价格在突破 +1σ 上轨后持续运行于该通道之上，并伴随成交量放大，确认强势多头趋势；反之，价格跌破 -1σ 下轨后持续运行于下方并放量，确认强势空头趋势。
多时间框架共振
建议在日线级别确定主要锚点和长期趋势方向，在小时或分钟级别寻找精确入场时机。当短周期 AVWAP 与长周期 AVWAP 方向一致时，信号可靠性显著增强。
五、锚点选择建议
良好的锚点选择是 AVWAP 有效性的前提。以下为推荐的锚点类型及示例：
宏观事件型：适用于重大政策或数据发布后的市场重定价，例如 FOMC 决议日、CPI 或非农数据发布日。
公司事件型：适用于基本面催化剂后的趋势跟踪，例如财报发布日、并购公告日。
技术结构型：适用于趋势跟踪与结构分析，例如显著摆动高点/低点、趋势起点、关键突破点。
时间节点型：适用于周期性基准参考，例如年初、月初、周初。
核心原则：锚点应选择对标的资产具有显著价格影响且市场参与者广泛关注的时间节点。
六、参数配置说明
您可以通过以下输入参数灵活控制指标显示：
锚定日期：分别设置年、月、日（默认为 2024 年 9 月 24 日）。
显示控制：您可以选择独立开启或关闭每一级标准差通道（±0.5σ、±1.0σ、±1.5σ、±2.0σ、±2.5σ、±3.0σ），按需保持图表简洁。
颜色编码体系：
蓝色基准线：AVWAP 主参考线。
绿色通道（±0.5σ、±1.0σ）：常态波动区间。
橙色通道（±1.5σ、±2.0σ）：中等级别偏离区间。
红色通道（±2.5σ、±3.0σ）：极端偏离 / 均值回归关注区间。
七、适用交易者类型
- 日内交易者：可将锚点设为当日开盘，利用 AVWAP 作为日内公允值参考与均值回归信号。
- 波段交易者：将锚点设为关键事件或摆动点，识别中期支撑/阻力区域。
- 趋势交易者：将锚点设为趋势起点，持续跟踪趋势健康度与方向。
- 机构与专业交易者：追踪市场平均成本，识别机构级买卖区域。
八、注意事项与风险提示
- 成交量数据质量直接影响 AVWAP 的参考价值，在低流动性品种上建议谨慎使用。
- 锚点选择必须基于合理逻辑（如重大事件），随机选取的日期可能导致指标失去参考意义。
- 标准差通道基于历史数据计算，不构成对未来走势的确定性预测，通道边界是概率参考而非硬性边界。
- 均值回归策略在强劲单边市场中可能面临较大风险，建议结合趋势强度指标进行过滤。
- 本指标仅供技术分析参考，所有交易决策应由您独立判断并自行承担风险。
九、开源说明
本指标以开源方式发布在 TradingView 社区。所有代码均可供您审阅、验证功能逻辑，并基于自身需求进行修改与优化。欢迎在评论区分享使用心得、改进建议或问题反馈。
价格告诉你发生了什么，成交量告诉你谁在推动它，AVWAP 告诉你市场的真实成本在哪里。
1. Indicator Overview
This indicator is an advanced quantitative analysis tool based on volume weighting. Its core functionality is to anchor the starting point of VWAP calculation to any historical timestamp you choose, and automatically generate six levels of standard deviation probability bands (±0.5σ, ±1.0σ, ±1.5σ, ±2.0σ, ±2.5σ, ±3.0σ) around that benchmark, forming a complete market price distribution monitoring system.
Unlike the traditional VWAP which resets at the open of each trading day, the Anchored VWAP fixes the calculation origin at a strategically significant point in time – for example, major macroeconomic events (FOMC decisions, CPI releases), company‑specific events (earnings announcements), technical structure nodes (trend starts, swing highs/lows, breakout points), or any moment you consider worth tracking. This design allows you to continuously monitor "the true average cost of the market since that event occurred," enabling more precise identification of institutional support/resistance, assessment of trend health, and capturing mean‑reversion opportunities.
This indicator is suitable for all instruments with genuine volume data, including stocks, ETFs, futures, cryptocurrencies, and can be applied on any timeframe (1‑minute, 5‑minute, daily, weekly, etc.).
2. Core Concepts & Design Logic
Upgrade from Daily Reset to Event Anchoring
Traditional VWAP recalculates at the open of each trading day, which is highly useful for intraday traders. However, for swing or trend traders who hold positions for days, weeks, or longer, the daily reset means the loss of critical historical context. AVWAP overcomes this limitation by fixing the anchor, allowing you to measure the evolution of market participants’ average cost from a specific event onwards.
From Price Position to Statistical Probability
A single VWAP line only tells you whether price is above or below the benchmark. This indicator introduces "volume‑weighted standard deviation," converting price deviations into statistically meaningful probability measures. The ±1σ band covers approximately 68% of the price distribution, defining the normal fluctuation range; ±2σ covers about 95%, reflecting significant deviations; ±3σ covers about 99.7%, and touches at this level typically indicate extreme sentiment pricing, with mean‑reversion probability rising markedly. This elevates price analysis from a simple "high/low" judgment to a "position within the statistical distribution" framework, providing quantifiable probabilistic grounds for decision‑making.
3. Brief Calculation Methodology
AVWAP is computed by accumulating the product of the typical price (arithmetic average of high, low, and close) and volume, then dividing by the cumulative volume to obtain the volume‑weighted average price since the anchor. The standard deviation is derived from the volume‑weighted accumulation of squared prices, combined with the variance formula E(P²)‑E(P)². The entire process requires only a single pass through the data, ensuring computational efficiency even over large time windows. Each band is simply the AVWAP value plus or minus the corresponding multiple (0.5, 1.0, 1.5, 2.0, 2.5, 3.0) of the standard deviation.
4. Practical Application Guide
Trend Direction Bias
When price consistently trades above AVWAP, it indicates that bulls have been dominant since the anchor, as the average market cost is below the current price and long positions are in profit. Conversely, sustained trading below AVWAP suggests bearish dominance. Frequent crossovers of AVWAP imply a range‑bound/equilibrium state.
Dynamic Support & Resistance
The AVWAP line itself is the most important dynamic support/resistance level. In an uptrend, a pullback that finds support at AVWAP often signals trend continuation; in a downtrend, a bounce that meets resistance at AVWAP also indicates continuation. The standard deviation bands also serve as secondary support/resistance zones, useful for scaling entries or taking partial profits.
Mean‑Reversion Trading
When price extends to the outer bands (e.g., ±2.5σ or ±3.0σ), it has significantly deviated from the volume‑weighted fair value, historically exhibiting a strong tendency to revert. Touching the upper extreme zone may be considered for short‑term selling or profit‑taking; touching the lower extreme zone may suggest short‑term buying or covering shorts. Note that in strong trending markets, price may linger in extreme zones for extended periods; it is advisable to combine with other trend‑strength filters.
Trend Continuation Confirmation
If price breaks above the +1σ upper band and continues trading above it with rising volume, it confirms a strong bullish trend. Conversely, if price breaks below the -1σ lower band and continues below it with volume expansion, it confirms a strong bearish trend.
Multi‑Timeframe Confluence
It is recommended to determine the primary anchor and longer‑term trend direction on the daily chart, and then seek precise entry signals on hourly or minute charts. When the shorter‑timeframe AVWAP aligns with the longer‑timeframe AVWAP, signal reliability increases significantly.
5. Anchor Selection Recommendations
Proper anchor selection is a prerequisite for AVWAP effectiveness. Below are recommended anchor types with examples:
Macro‑Event Type: Suitable for market re‑pricing after major policy/data releases, e.g., FOMC decision days, CPI or Non‑Farm Payroll release days.
Company‑Event Type: Suitable for trend following after fundamental catalysts, e.g., earnings release days, M&A announcement days.
Technical‑Structure Type: Suitable for trend‑following and structural analysis, e.g., significant swing highs/lows, trend starting points, key breakout levels.
Time‑Based Type: Suitable for periodic benchmark references, e.g., start of the year, month, or week.
Core Principle: The anchor should be chosen at a point in time that had a notable price impact on the asset and is widely observed by market participants.
6. Input Parameter Settings
You can flexibly control the indicator display with the following inputs:
Anchor Date: Set year, month, and day separately (default is 2024‑09‑24).
Display Controls: You can independently enable or disable each standard deviation band (±0.5σ, ±1.0σ, ±1.5σ, ±2.0σ, ±2.5σ, ±3.0σ) to keep your chart as clean as needed.
Color Coding System:
Blue baseline: AVWAP main reference line.
Green bands (±0.5σ, ±1.0σ): Normal fluctuation range.
Orange bands (±1.5σ, ±2.0σ): Moderate deviation range.
Red bands (±2.5σ, ±3.0σ): Extreme deviation / mean‑reversion focus zone.
7. Suitable Trader Types
- Day traders: Can set the anchor to the day's open, using AVWAP as an intraday fair‑value reference and mean‑reversion signal.
- Swing traders: Anchor to key events or swing points to identify intermediate support/resistance areas.
- Trend traders: Anchor to the trend’s starting point to continuously monitor trend health and direction.
- Institutional / professional traders: Track the average market cost to identify institutional‑grade accumulation/distribution zones.
8. Important Notes & Risk Disclaimers
- The quality of volume data directly affects the reference value of AVWAP; use with caution on low‑liquidity instruments.
- Anchor selection must be based on sound logic (e.g., significant events); randomly chosen dates may render the indicator meaningless.
- Standard deviation bands are computed from historical data and do not constitute a deterministic prediction of future price movements; band boundaries are probabilistic references, not hard edges.
- Mean‑reversion strategies carry higher risk in strong trending markets; it is advisable to incorporate trend‑strength filters.
- This indicator is for technical analysis reference only. All trading decisions should be made independently by the user, who bears full responsibility for their actions.
9. Open Source Statement
This indicator is published as open source in the TradingView community. All code is available for you to review, verify its functional logic, and modify or optimise according to your own needs. Feedback, usage experiences, and suggestions for improvement are warmly welcomed in the comments section.
*“Price tells you what happened, volume tells you who is driving it, and AVWAP tells you where the market’s true cost lies.”*
Indicateur
ATR Chandelier StopTrade Control Adaptive ATR Chandelier Stop
The Trade Control Adaptive ATR Chandelier Stop is a volatility based trailing stop designed for swing and position traders who want a more objective way to manage exits and protect gains.
Instead of applying the same fixed percentage stop to every stock, the indicator uses Average True Range, or ATR, to account for how much each symbol typically moves. More volatile stocks receive wider stop levels, while lower volatility stocks receive tighter stop levels.
How it works
For long positions, the trailing stop is calculated as:
Highest high over the selected lookback period minus ATR multiplied by the selected multiplier
With the default settings, the calculation is:
22 bar highest high minus 3 times the 14 bar ATR
This creates a stop that hangs below the stock’s recent high, which is why it is called a Chandelier stop.
As the stock makes new highs, the stop can move higher. During normal pullbacks, the stop generally does not move lower while the bullish trend remains intact.
When price closes below the trailing stop, the indicator changes to a bearish state and begins plotting the corresponding stop above price.
Default settings
ATR Length: 14
Price Lookback: 22
ATR Multiplier: 3.0
Automatic Volatility Adjustment: Off by default
These settings are intended as a balanced starting point for swing and position traders using the daily chart and holding trades for several weeks to several months.
Adaptive volatility option
The optional adaptive setting adjusts the ATR multiplier based on ATR as a percentage of the stock price.
When enabled, the indicator gives highly volatile stocks additional room and may tighten the stop for lower volatility stocks. The standard 3 ATR setting remains the default for traders who prefer a simpler and more consistent approach.
Best uses
The indicator is designed for:
• Swing trading
• Position trading
• Trend following
• Managing profitable trades
• Reducing emotional exit decisions
• Monitoring individual stocks or watchlists
It is generally most useful on the daily timeframe.
Alert condition
The script includes an alert condition for a confirmed daily close below the trailing stop.
Recommended TradingView alert settings:
Condition: Daily Close Below ATR Stop
Interval: 1D
Trigger: Once per bar close
The alert is designed to trigger when the trend first changes from bullish to bearish. It does not repeatedly alert every day while price remains below the stop.
Important considerations
The Trade Control Adaptive ATR Chandelier Stop is a trade management tool, not a complete trading strategy.
Traders should also consider technical support and resistance, entry price, position size, maximum acceptable loss, earnings risk, gap risk, and overall market conditions.
A stock can gap below the plotted stop, particularly around earnings or major news. The indicator does not guarantee execution at the displayed price. Indicateur

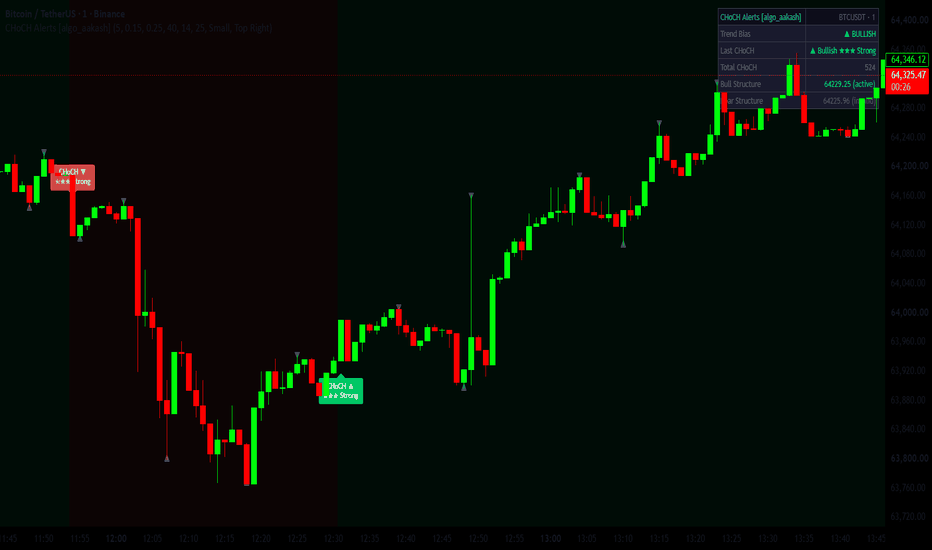

Change of Character (CHoCH) Alert System [algo_aakash]Change of Character (CHoCH) Alert System is a market structure signal tool focused on a single event: a confirmed shift in directional bias. Rather than labeling every Break of Structure and CHoCH the way many public structure scripts do, this indicator deliberately ignores continuation breaks and limits both the chart and the alert feed to the moments where the prevailing character of the market actually flips.
Problem Statement
Most public CHoCH implementations classify a character change purely on the direction of a swing break, with no measure of how convincing that break actually was. This creates two practical issues for anyone building alerts around structure. Every minor swing wobble can trigger a notification, producing alert fatigue, and there is no way to separate a decisive character change from one that barely closed beyond the swing level. This script addresses both issues with a close-confirmed CHoCH-only detection engine and a built-in confidence grading step applied to every signal.
Methodology
The script maintains a single structure register holding the most recent confirmed swing high and swing low, located with standard pivot detection over a user-defined pivot length. When the adaptive swing filter is enabled, a newly confirmed pivot only replaces the stored swing if its distance from the last opposite-type pivot exceeds a configurable ATR-relative threshold, which keeps insignificant micro-swings out of the structure register before they can influence a signal.
A Change of Character is only evaluated on a confirmed candle close, so nothing in the detection logic repaints once a signal has printed. A bullish CHoCH requires a close above the last swing high while the tracked bias is bearish or undefined. A bearish CHoCH requires a close below the last swing low while the tracked bias is bullish or undefined. A break that occurs while the bias already agrees with the break direction is treated as ordinary continuation and is not flagged.
Two optional filters gate confirmation further. A displacement filter requires the breaking close to clear the swing level by a minimum ATR multiple, removing marginal breaks. A momentum filter requires the breakout candle's body to represent a minimum percentage of its total range, removing breaks driven mostly by wick with little real conviction behind the close.
Once a CHoCH is confirmed, the broken swing level is projected forward on the chart as an active structure line. If a later confirmed close moves back through that level, the structure is marked invalidated and the projection line is dimmed, separately from the detection of any new CHoCH.
Signal Workflow
Track the most recent confirmed swing high and swing low using pivot detection.
Apply the adaptive swing filter to reject pivots too close to the last opposite-type pivot.
On each confirmed candle close, test for a close beyond the stored swing level against the current bias.
Apply the displacement filter to confirm the close cleared the level by a minimum ATR multiple.
Apply the momentum filter to confirm the breakout candle's body-to-range ratio meets the minimum threshold.
Score the confirmed breakout candle on displacement in ATR units and body-to-range ratio to produce a Weak, Moderate, or Strong confidence grade.
Flip the tracked bias, plot the CHoCH label with its grade, and project the broken level forward as an active structure line.
Continue monitoring the active structure line and mark it invalidated if a later confirmed close moves back through it.
Why This Indicator Is Different
Many structure tools plot every Break of Structure alongside every CHoCH, leaving the trader to filter out which events represent an actual change in character.
This script omits BOS events entirely and reports only confirmed CHoCH signals, which are the events that correspond to a bias flip.
Each confirmed CHoCH is scored using two independent factors measured on the breakout candle itself, its ATR-normalized displacement past the level and its body-to-range ratio, rather than being treated as a single undifferentiated event.
The confidence grade is written into the alert message text at the moment the event fires, which requires composing the message dynamically rather than relying on a fixed template.
The swing level broken by a CHoCH remains tracked after the signal fires, so a later close back through that level produces a distinct invalidation alert rather than silently vanishing into the next structure calculation.
Detection is restricted to confirmed candle closes throughout, so the bias, the grade, and the invalidation state cannot change intrabar once printed.
Inputs
Structure Engine
Swing Pivot Length
Adaptive Swing Filter
Filter Threshold (ATR multiple)
Break Confirmation
Displacement Filter
Displacement Multiplier
Momentum Filter
Minimum Body % of Range
ATR Length
Visual Settings
Show Swing Points
Show Structure Projection
Projection Extension
Show Trend Background Wash
Color Candles After CHoCH
Show Confidence Grade
Label Size
Bullish, Bearish, and Projection colors
Status Panel
Show Status Panel
Panel Position
Alerts
Alert: Bullish CHoCH
Alert: Bearish CHoCH
Alert: Bullish Structure Invalidated
Alert: Bearish Structure Invalidated
Alerts
Alerts are available for:
Bullish CHoCH confirmed on a closed candle, with the confidence grade included in the alert message
Bearish CHoCH confirmed on a closed candle, with the confidence grade included in the alert message
Bullish structure invalidated after a confirmed close back below an active bullish level
Bearish structure invalidated after a confirmed close back above an active bearish level
Practical Usage
Use a shorter pivot length on intraday charts to react to structure earlier, combined with the displacement and momentum filters to avoid marginal breaks.
Use a longer pivot length on higher timeframes to isolate structurally significant character changes only.
Treat a Strong-grade CHoCH as a higher-conviction event than a Weak-grade CHoCH when weighing entry timing or position sizing.
Watch for a structure invalidated alert shortly after a CHoCH, since it indicates price has returned through the level that produced the signal.
Use the status panel as a quick reference for the current bias and the most recent CHoCH grade without needing to scan the chart for labels.
Limitations
Swing highs and lows depend on confirmed pivots, which require the full pivot length of bars to close on both sides before becoming available, introducing a disclosed confirmation lag.
The displacement and momentum filters reduce signal frequency by design, which means fewer but more selective CHoCH events compared to unfiltered structure break detection.
Structure invalidation reflects a return through a previously broken level and does not attempt to forecast subsequent price direction.
This indicator identifies structural events only and does not constitute financial advice or a complete trading system on its own.
Notes
All structural state, including the tracked bias, the active levels, and the confidence grade, is evaluated only on a confirmed candle close, so nothing in this script repaints once printed.
The only lag in the system is the standard pivot confirmation lag inherent to pivot-based swing detection, which is disclosed above rather than hidden.
Designed for dark theme charts. On light themes, consider darkening the projection line color for improved contrast.
Indicateur

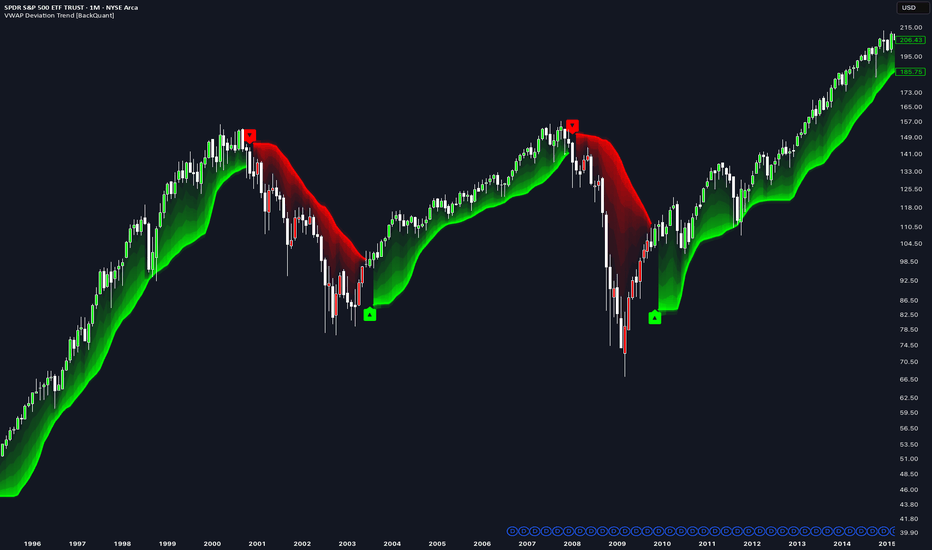

VWAP Deviation Trend [BackQuant]VWAP Deviation Trend
Overview
VWAP Deviation Trend is a volume-weighted trend-following overlay that transforms VWAP and its surrounding price distribution into a directional trailing structure.
Rather than using VWAP only as a fair-value line, the indicator calculates:
A configurable anchored or rolling VWAP.
The volume-weighted standard deviation of price around that VWAP.
Adaptive upper and lower deviation bands.
One-sided trailing boundaries used to confirm bullish and bearish regimes.
The indicator is designed to identify when price has moved far enough away from accepted volume-weighted value to establish a meaningful directional shift.
Unlike a simple VWAP crossover, price can move through VWAP without immediately changing the active trend. A new regime requires price to break the opposite trailing deviation boundary, optionally with confirmation from the direction of VWAP itself.
The updated visual engine also measures trend strength and uses it to control:
Gradient intensity.
Trail glow width.
Post-flip bloom effects.
The visual separation between price and the active trail.
Core concept
VWAP represents the average price paid over a selected period, weighted by trading volume.
The basic formula is:
VWAP = Sum of Price × Volume / Sum of Volume
Prices associated with greater volume contribute more heavily to the final value. This makes VWAP a useful approximation of:
Volume-weighted fair value.
The center of traded activity.
The average position of market participants.
An institutional execution benchmark.
However, VWAP alone does not explain how widely price has been distributed around that value.
VWAP Deviation Trend treats VWAP as the center of a volume-weighted price distribution and measures the dispersion around it. That dispersion is then used to create trailing trend boundaries.
VWAP calculation modes
The indicator supports five VWAP windows:
4 Hours
Daily
Weekly
Rolling Lookback Bars
Rolling Lookback Days
4 Hours
Resets VWAP at fixed four-hour intervals.
This can be useful for:
Cryptocurrency markets.
Intraday futures.
Continuously traded markets.
Shorter fair-value regimes.
Daily
Resets at the beginning of each calendar day.
This is the traditional intraday VWAP structure and is useful for:
Session bias.
Intraday mean reversion.
Day-trading trend confirmation.
Weekly
Accumulates volume and price across the current week.
This creates a slower structural anchor suited to:
Swing trading.
Weekly positioning.
Broader accepted-value analysis.
Rolling Lookback Bars
Calculates VWAP over a fixed number of candles.
The window moves forward continuously and does not reset at a calendar boundary.
This is useful for:
Systematic trend models.
Consistent multi-timeframe analysis.
Markets where daily sessions are less important.
Rolling Lookback Days
Includes bars that fall within a selected number of calendar days.
This keeps the analytical window tied to elapsed time instead of a fixed candle count.
Anchored versus rolling VWAP
Anchored modes begin at a fixed boundary and accumulate until the next reset.
Rolling modes continually remove old observations as new observations arrive.
Anchored VWAP is useful when a particular session or week has structural meaning. Rolling VWAP is useful when the trader wants a stable and continuously adapting lookback.
Volume-weighted deviation
The indicator calculates more than the VWAP mean.
It also measures volume-weighted price variance using:
Weighted Mean Square = Sum of Price² × Volume / Sum of Volume
Weighted Variance = Weighted Mean Square - VWAP²
Weighted Deviation = Square Root of Weighted Variance
This measures how widely prices associated with meaningful trading volume are distributed around VWAP.
A small deviation suggests:
Trading is concentrated near fair value.
The market is relatively balanced.
Price acceptance is narrow.
A large deviation suggests:
Trading is spread across a wider range.
Price discovery is more active.
The market is less tightly centered around VWAP.
Because the calculation is volume weighted, high-volume prices influence the bands more than low-volume excursions.
Fallback when volume is unavailable
If usable volume is not available, the indicator falls back to an unweighted arithmetic mean and variance.
This allows it to function on synthetic or limited-volume symbols, although the result should then be interpreted as a rolling or anchored mean rather than a true VWAP.
Deviation bands
The raw width is calculated as:
Deviation Width = Weighted Deviation × Deviation Multiplier
The upper and lower raw bands are:
Upper Band = VWAP + Band Width
Lower Band = VWAP - Band Width
Higher deviation multipliers create wider bands and fewer trend changes.
Lower multipliers create tighter bands and faster, more frequent flips.
ATR minimum width
During low-dispersion periods, volume-weighted deviation can become extremely narrow.
This can cause small and insignificant movements to trigger repeated reversals.
The optional ATR floor calculates:
ATR Floor = ATR × ATR Minimum Multiplier
The final width becomes:
Band Width = Maximum of Deviation Width and ATR Floor
This preserves volume-weighted deviation as the primary band engine while preventing the channel from collapsing below a practical volatility threshold.
Trailing-band construction
The raw deviation bands move freely with VWAP and dispersion.
The indicator converts them into one-sided trailing levels.
Lower trail
While the selected trigger remains above the lower trail:
The trail can rise.
It cannot move downward.
This creates a ratcheting support structure.
Upper trail
While the trigger remains below the upper trail:
The trail can fall.
It cannot move upward.
This creates a ratcheting resistance structure.
The active trend trail is:
The lower trail during bullish regimes.
The upper trail during bearish regimes.
Why trailing logic matters
A raw VWAP band can move toward price and create unstable signals.
The one-sided trail preserves trend structure and creates hysteresis.
Hysteresis means the threshold required to enter a bullish regime is different from the threshold required to enter a bearish regime.
This allows price to rotate around VWAP without constantly changing the active trend.
Trend initialization
When the first valid VWAP is available:
The trend initializes bullish if the trigger is at or above VWAP.
The trend initializes bearish if the trigger is below VWAP.
After initialization, a full break of the opposite trail is required to change regimes.
Bullish trend flip
A bullish flip requires:
The selected trigger to move above the upper trailing band.
The current trend not already to be bullish.
VWAP slope confirmation to pass if enabled.
Once confirmed:
The trend becomes bullish.
The active trail moves beneath the market.
A bullish signal marker is displayed.
Bearish trend flip
A bearish flip requires:
The selected trigger to move below the lower trailing band.
The current trend not already to be bearish.
VWAP slope confirmation to pass if enabled.
Once confirmed:
The trend becomes bearish.
The active trail moves above the market.
A bearish signal marker is displayed.
Flip trigger
The trend can be triggered using:
Close
The selected VWAP price source
Close is the more conventional option.
Using the price source, such as HLC3, can produce a slightly smoother trigger because it reflects more of the bar than the close alone.
VWAP slope confirmation
Optional slope confirmation requires VWAP itself to move in the direction of the proposed new trend.
For a bullish flip:
Current VWAP must be above VWAP from the selected lookback.
For a bearish flip:
Current VWAP must be below its prior value.
This can help reject:
Temporary band breaks.
Low-volume price spikes.
Liquidity sweeps against flat fair value.
The tradeoff is additional confirmation delay.
Breaking the trail on flips
The active trail changes from one side of the market to the other during a regime transition.
The Break Trail On Flips option inserts a visual gap on the flip bar so the previous and new trails are not connected by a misleading line segment.
This affects presentation only.
Visual trend-strength engine
The updated script includes a visual-strength model that controls the intensity of the gradient and glow.
It combines two measurements:
Distance between price and the active trail.
Slope of VWAP relative to the current band width.
Distance strength
The script measures:
Absolute Distance = |Close - Trend Trail|
This is normalized by the current band width.
A larger distance indicates stronger separation between price and the structural trail.
Slope strength
VWAP movement across the slope lookback is also normalized by the band width.
This measures whether volume-weighted fair value itself is moving meaningfully relative to the size of the current deviation structure.
Combined trend strength
The final visual strength is weighted:
70% price-to-trail distance.
30% VWAP slope strength.
This produces a value between zero and one.
It does not change trend logic or signals. It controls the visual intensity of the indicator.
Layered gradient fill
Instead of using one flat gradient, the updated indicator divides the space between the trail and price into six visual layers.
The levels are placed progressively between:
The active trend trail.
The current closing price.
The gradient is:
Most concentrated near the structural trail.
Progressively softer toward price.
The opacity adapts to trend strength.
When price is strongly separated from the trail and VWAP is moving with the regime:
The gradient becomes more vivid.
When the trend is weak:
The fill becomes softer and more transparent.
This makes the visual ribbon encode more than direction. It also reflects the current strength of the price-to-structure relationship.
Flip bloom
After a confirmed trend flip, the indicator creates a temporary bloom around the new trail.
The bloom is strongest immediately after the transition and fades over the following bars.
Its intensity follows this general sequence:
First bar after flip: strongest bloom.
Second bar: reduced bloom.
Third bar: light residual bloom.
Afterward: bloom disappears.
This visually emphasizes fresh regime changes without permanently increasing chart brightness.
The bloom is cosmetic and does not affect calculation.
Adaptive trail glow
The glow surrounding the trail also changes with trend strength.
The base width is ATR-scaled, then increases slightly as the visual trend-strength score rises.
This creates:
A broader glow during stronger regimes.
A narrower glow when trend structure is weaker.
The glow contains:
An inner, more visible layer.
A wider, softer outer layer.
Visual interpretation
The updated presentation provides several pieces of information simultaneously:
Color shows the active trend direction.
The trail shows the structural regime boundary.
Gradient intensity reflects trend strength.
Glow width reinforces structural conviction.
The bloom highlights fresh regime transitions.
How to use the indicator
Trend regime filter
Use the active color and trail position as directional context:
Favor longs during bullish regimes.
Favor shorts during bearish regimes.
Pullback structure
In a bullish regime:
VWAP represents volume-weighted fair value.
The lower trail represents deeper structural support.
In a bearish regime:
VWAP represents the mean-reversion anchor.
The upper trail represents deeper structural resistance.
Trend-strength context
A vivid gradient and broader glow suggest:
Price is well separated from the trail.
VWAP is moving in the trend direction.
The regime has stronger structural momentum.
A weak or faded gradient suggests:
Price is closer to the trail.
VWAP slope is weaker.
The trend may be consolidating or losing strength.
Fresh transitions
The bloom helps identify newly established regimes.
A fresh flip with:
Strong bloom.
Growing price separation.
VWAP slope alignment.
generally represents stronger early trend structure than a flip that immediately loses visual intensity.
Dynamic risk management
The active trail may be used as:
A trailing stop reference.
A regime invalidation boundary.
A position-management guide.
Because the trail responds to both volume-weighted dispersion and volatility, it adjusts as market conditions change.
How this differs from a standard VWAP
A standard VWAP:
Plots only volume-weighted mean price.
Usually resets once per session.
Does not maintain trend state.
VWAP Deviation Trend:
Supports anchored and rolling windows.
Calculates volume-weighted dispersion.
Creates adaptive raw bands.
Converts them into directional trailing boundaries.
Maintains persistent bullish and bearish regimes.
Adds a strength-reactive visual system.
How this differs from Supertrend
A traditional Supertrend normally uses a central price such as HL2 and ATR-based bands.
VWAP Deviation Trend uses:
Volume-weighted fair value as the center.
Volume-weighted standard deviation as the primary width.
ATR only as an optional minimum floor.
This means the trail responds not only to range volatility, but also to where trading volume has been concentrated.
How this differs from Bollinger Bands
Bollinger Bands normally use:
A moving average.
Unweighted standard deviation.
Symmetrical non-trailing bands.
This indicator uses:
A volume-weighted mean.
Volume-weighted variance.
One-sided trailing bands.
Persistent trend-state logic.
It is therefore a trend-regime model rather than a standard mean-reversion envelope.
Input guide
VWAP Mode
Selects the anchored or rolling calculation window.
Deviation Multiplier
Controls the width of the statistical bands.
Higher values produce wider, slower regimes. Lower values produce tighter and faster regimes.
ATR Minimum Width
Prevents excessive narrowing during compressed conditions.
VWAP Slope Confirmation
Requires volume-weighted fair value to move with the proposed trend.
Flip Trigger
Selects whether close or the chosen price source must cross the trail.
Visual settings
Allow the trader to display:
The trend trail.
VWAP.
Raw deviation bands.
Layered gradient.
Adaptive glow.
Signals.
Trend candles.
Strengths
Combines fair value, dispersion, and trend structure.
Uses volume-weighted mean and variance.
Supports multiple anchored and rolling VWAP windows.
Uses ATR protection against narrow-band whipsaws.
Creates persistent regimes with hysteresis.
Provides optional VWAP slope confirmation.
Includes a trend-strength-reactive visual system.
Clearly emphasizes fresh trend transitions.
Limitations
Volume quality varies between instruments.
Anchored VWAP modes may be unstable immediately after a reset.
Long windows can react slowly to sudden regime changes.
Tight settings can increase whipsaws.
Wide settings can delay reversals.
Slope confirmation can add additional lag.
Visual strength is contextual and is not a separate trading signal.
Alerts
The indicator includes alerts for:
Confirmed bullish trend flips.
Confirmed bearish trend flips.
These represent complete VWAP deviation regime changes, not ordinary crosses of VWAP.
Summary
VWAP Deviation Trend converts volume-weighted fair value and price dispersion into a directional trend trail.
It calculates VWAP over a configurable anchored or rolling window, measures volume-weighted standard deviation around that VWAP, and builds upper and lower deviation bands. An optional ATR floor prevents the structure from becoming excessively narrow during quiet conditions.
The raw bands are transformed into one-sided trails. The lower trail ratchets upward during bullish regimes, while the upper trail ratchets downward during bearish regimes. Trend changes occur only when price breaks the opposite trail, optionally with confirmation from the slope of VWAP.
The updated visual engine measures price separation and VWAP slope to dynamically control the layered gradient, trail glow, and temporary post-flip bloom. This creates a clearer representation of direction, structural strength, and fresh regime transitions without changing the underlying signal logic. Indicateur
Wavelet Trend FilterWhat it is
A denoised price line whose smoothing is derived from measured noise, not a period you pick — plus the tool's signature number, the noise fraction (what share of the recent move is noise vs structure). Most published "wavelet denoising improves prediction" results denoise the whole series including future bars, which is lookahead-contaminated and impossible live. This tool refuses that: it runs a Haar wavelet transform over a trailing power-of-two window and keeps only the endpoint as today's value, fixed at close and never revised. Strictly causal, non-repainting, no forecast.
How it's built
The engine is a five-step Donoho-Johnstone wavelet shrinkage, run every bar over a trailing window (default 128 bars): a Haar DWT (shortest support, fewest boundary coefficients — the right choice for short causal series); noise scale σ = MAD(finest detail coefficients)/0.6745 (robust to outliers); the universal threshold λ = σ·√(2 ln n) with an optional multiplier; soft or hard shrinkage of the detail coefficients; and an inverse transform, keeping the endpoint. Optional symmetric reflection padding reduces edge distortion. Because the threshold self-scales from measured noise, a quiet tape is smoothed less and a noisy tape more — automatically, on any timeframe.
Derived reads: noise fraction = 1 − var(denoised)/var(raw) over the window (share the transform removed), ranked into a percentile; trend slope in noise-σ units; and a signal-to-noise strength = slope (σ) × structure share (1 − noise fraction), the single "is this trend real?" number.
How you read it — and the honest actionable signal
The noise fraction gates everything. A bold chop/structure ribbon along the bottom of the chart shows the whole regime spectrum (green = structure/low noise/trend trustworthy, red = chop/high noise/stand aside), and a ±1σ noise envelope around the denoised line makes the removed noise visible — so it's obviously not just a moving average.
The actionable markers are structure-gated: a green ▲ / red ▼ prints when the denoised slope turns up/down and the tape has structure (low noise); in chop the tool withholds and marks the turn with a small caution dot instead. A hysteresis on the structure state keeps the signals from re-firing as noise oscillates. This is not a blind crossover generator — it goes quiet exactly when the tape is too noisy to trust, which is when ordinary signals whipsaw. The panel's "Read" row states the current call in plain English ("up-trend · structure ✓", "chop — stand aside").
Exports & alerts
EXP_Denoised · EXP_NoiseSigma · EXP_NoiseFrac (0–1) · EXP_Slope (σ) · EXP_SNR (trend strength) · EXP_Stance (+1 up·structure / −1 down·structure / 0). Alerts: noise fraction entering top / bottom quartile (chop / structure) · denoised slope turning up / down · confirmed up-trend / down-trend with structure present. Indicateur
Pymander's Epiphany# Pymander’s Epiphany
Pymander’s Epiphany is a powerful range-to-expansion trading indicator built to help retail traders find, evaluate, and manage quality breakout opportunities.
Instead of printing an arrow whenever price crosses a level, Epiphany follows the full life cycle of a setup:
**Range formation → validation → breakout → confirmation → continuation**
The indicator features three range-detection modes, adjustable range preferences, early breakout warnings, confirmed signals, and a dedicated continuation engine for catching secondary entries after the initial move.
Every breakout receives a transparent strength score based on:
* Closing strength
* Candle-body dominance
* Range expansion
* Volume expansion
* Breakout distance
Signals are graded from C to A+, making it easy to separate ordinary price breaks from moves showing stronger conviction and participation.
Optional EMA and VWAP filters help confirm market direction and identify flat or conflicting conditions. For traders who prefer fewer, more selective signals, Elite Mode applies stricter structure, alignment, and signal-quality requirements.
Epiphany can also automatically display the entry, stop, and 1R target using several stop methods, including ATR, recent swing, opposite side of the range, and breakout candle.
The live dashboard shows the current range state, directional bias, range quality, strength score, signal grade, EMA/VWAP alignment, and continuation status. Detailed alerts can notify traders of early warnings, confirmed breakouts, continuations, and changing range conditions.
What makes Epiphany special is how all these features work together. It isn’t just another breakout indicator—it’s a complete decision-support system designed to give retail traders more structure, context, and confidence.
No indicator can predict every move, so always use proper risk management and test the settings for your preferred market and timeframe.
Best of luck, stay disciplined, and trade well!
— **Pymander**
Indicateur

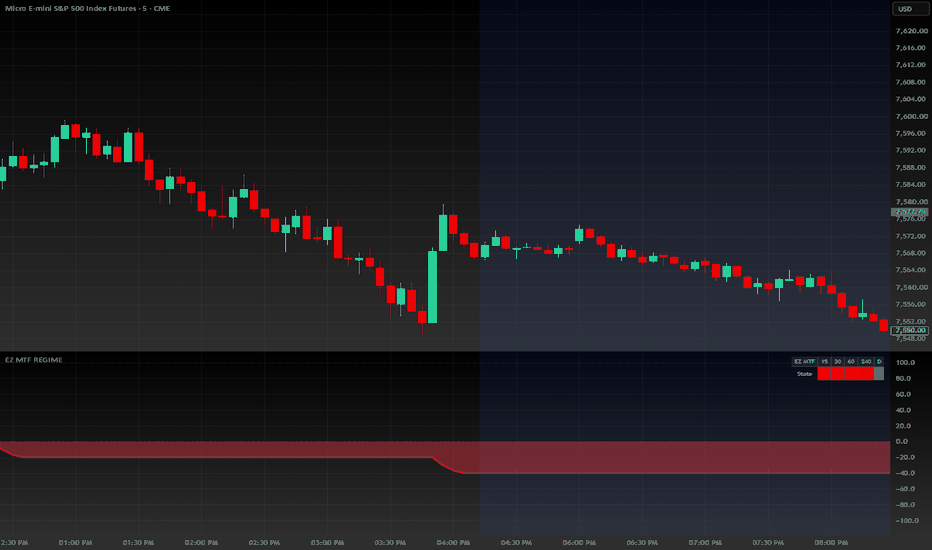

Pymander's EZ MTF Regime Filter**Pymander’s EZ MTF Regime Filter** is a multi-timeframe trend and market-condition tool designed to help traders see whether several larger timeframes are aligned bullish, bearish, or neutral.
The indicator analyzes five customizable timeframes and combines their readings into one easy-to-understand regime score ranging from **-100 to +100**.
* Scores above zero show bullish alignment.
* Scores below zero show bearish alignment.
* Readings near zero suggest mixed, neutral, or transitioning conditions.
* Readings near +100 or -100 show strong agreement across the selected timeframes.
Traders can choose between two methods for determining the trend on each timeframe:
* **EMA Alignment:** Looks at price position and the relationship between fast and slow moving averages.
* **Supertrend:** Uses volatility-based trend direction to classify each timeframe.
The final score is smoothed into a clear momentum-style wave, making it easier to recognize strengthening trends, weakening alignment, and possible regime changes.
Key features include:
* Five fully customizable timeframes
* Bullish, bearish, and neutral regime scoring
* EMA Alignment or Supertrend-based analysis
* Optional volume confirmation
* Optional local Supertrend confirmation
* Breakout-based BUY and SELL labels
* Bullish and bearish multi-timeframe divergence detection
* Adjustable score smoothing
* Clean area, line, and glow visuals
The BUY and SELL signals are designed to appear only when several conditions agree. The multi-timeframe score must show strong directional alignment, price must break a recent high or low, and the optional volume and Supertrend filters must confirm the move.
What sets EZ MTF Regime Filter apart from a basic trend indicator is its ability to combine several timeframes into one unified market reading. Instead of checking multiple charts individually, traders can quickly see whether short-, medium-, and higher-timeframe conditions are working together or conflicting.
The divergence markers can also help identify moments when price continues making new highs or lows while broader timeframe alignment begins to weaken, potentially warning of fading momentum or an upcoming shift.
Use this tool as a directional filter, confirmation layer, or market-regime guide alongside proper risk management, price structure, and a tested trading plan.
Best of luck with your trading. Stay disciplined, remain patient, and always protect your capital.
— **Pymander**
Indicateur
Pymander's EZ Trend Alignment**Pymander’s EZ Trend Alignment** is a clean and easy-to-read trend-following indicator designed to help traders quickly identify bullish and bearish market direction.
The tool combines the Commodity Channel Index with an ATR-based trailing trend line. In simple terms, the CCI measures whether momentum favors buyers or sellers, while the ATR calculation adjusts the trend line to current market volatility.
When bullish momentum is present, the line trails beneath price and displays green. When bearish momentum takes control, the line moves above price and displays red. The trailing logic helps traders follow established trends while recognizing possible shifts in direction.
The indicator includes two coloring styles:
* **Original Coloring:** Changes color based directly on bullish or bearish CCI momentum.
* **Trend Coloring:** Changes color based on whether the trailing line is rising or falling.
Pymander’s EZ Trend Alignment may be used to confirm market direction, filter long and short setups, identify possible trend changes, follow directional moves, and avoid trading against established momentum.
Its strength is simplicity. Rather than cluttering the chart with unnecessary signals, it provides a clear visual guide to help traders determine whether price, momentum, and volatility are aligned.
As with any indicator, use it alongside proper risk management, market structure, and a tested trading plan. No indicator can guarantee profitable results.
Best of luck in the markets, traders. Stay patient, remain disciplined, and protect your capital.
— **Pymander**
Indicateur

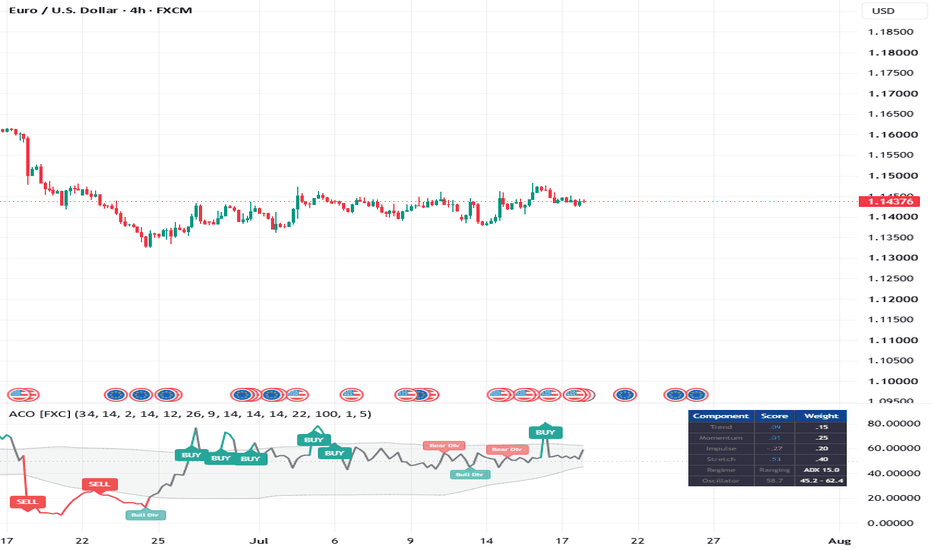

Adaptive Confluence Oscillator [ForexCracked]🔵 OVERVIEW
The Adaptive Confluence Oscillator scores four independent read-outs of the market on a continuous scale, weights them according to the current market regime, and plots the result as a single 0 to 100 line. Instead of asking "do my indicators agree, yes or no," it asks "how strongly does each one agree, and which of them should I be listening to right now."
It has no fixed overbought or oversold levels. The bands are calculated from the oscillator's own recent behaviour, so they widen when the market gets volatile and tighten when it goes quiet.
Signals confirm on candle close and do not repaint.
🔵 WHY THIS IS BUILT THE WAY IT IS
Most multi-indicator tools take a vote. RSI is oversold or it is not. That throws away most of the information: an RSI of 29 and an RSI of 12 are not the same signal, but a vote counts them identically. It also treats every indicator as equally relevant at all times, which is plainly false. Stochastic exhaustion means one thing in a strong trend and the opposite thing in a range.
This oscillator fixes both problems. Every component returns a continuous score, and the market regime decides how much each score is worth.
🔵 THE FOUR COMPONENTS (each scored from -1 to +1)
• Trend: how far price sits from its baseline EMA, measured in ATR units rather than in price. Distance matters, not just which side of the line you are on. Because it is measured in ATR, it reads the same on gold as it does on EURUSD.
• Momentum: RSI recentred around 50, so it contributes proportionally instead of flipping at a threshold.
• Impulse: the MACD histogram converted to a z-score against its own rolling deviation. This makes MACD comparable across symbols and timeframes without ever re-tuning it, which raw MACD values are not.
• Stretch: the Stochastic, recentred. This is the component that changes behaviour with regime (see below).
🔵 THE REGIME SWITCH (the part that makes it adaptive)
ADX decides whether the market is trending or ranging, and that changes two things.
First, the weights re-balance:
• Trending: Trend 0.35, Momentum 0.25, Impulse 0.30, Stretch 0.10
• Ranging: Trend 0.15, Momentum 0.25, Impulse 0.20, Stretch 0.40
Second, and more importantly, the Stretch component flips sign. In a trend, a stretched Stochastic confirms the move and pushes the score further in that direction. In a range, the same reading argues for a fade and pushes the score the other way. This is the behaviour a discretionary trader applies without thinking about it, and it is what a fixed vote cannot express.
🔵 ADAPTIVE BANDS
There are no 70/30 lines here. The upper and lower bands are the rolling mean of the oscillator plus and minus a multiple of its own standard deviation. A reading of 68 can be an extreme in a quiet market and completely unremarkable in a volatile one, and the bands reflect that.
• BUY: the score crosses above the upper adaptive band
• SELL: the score crosses below the lower adaptive band
🔵 DIVERGENCE
The script finds pivots on the score itself and compares them against price at those same bars. When price makes a higher high but the score makes a lower high, that is marked as a bearish divergence, and the mirror case as bullish. Divergences are labelled and have their own alerts. Because a divergence is anchored to a confirmed pivot, it prints a few bars after that pivot forms and never moves once printed.
🔵 THE DASHBOARD
The panel shows each component's live score, its current weight, the detected regime with the ADX value, and the oscillator against its adaptive bands. You can see exactly which component is driving the reading and why, rather than trusting a black box.
🔵 SETTINGS
• Baseline EMA 34, ATR 14, Trend Span 2.0 x ATR
• RSI 14, MACD 12/26/9, Stochastic 14
• ADX 14, trending above 22
• Band lookback 100, band width 1.0 x standard deviation
🔵 HOW TO USE
• Take signals where the dashboard regime agrees with the direction. A BUY in a trending regime is a continuation. A BUY in a ranging regime is a fade off the bottom of the range.
• Treat a divergence as a warning to tighten or take partials, not as a standalone entry.
• Raise the band width above 1.0 for fewer and stronger signals, lower it for more.
• Widen Trend Span on noisy symbols so ordinary volatility does not read as trend.
⚠️ DISCLAIMER
This is an analysis tool, not a prediction. A confluence score is a measure of agreement, and indicators can agree and still be wrong. Results depend on market conditions, settings, and your own execution and risk management. Shared for educational and research purposes. Not financial advice. Indicateur
EMA Ribbon Trend Filter [StrixEDGE]EMA Ribbon Trend Filter is a multi-layered trend analysis system built around a triple EMA ribbon (8/21/55) enhanced with squeeze detection, a composite momentum score, multi-timeframe confluence, and dynamic slope-adaptive coloring.
This is not another moving average overlay. It is a full trend diagnostics dashboard designed to answer five questions at a glance: what is the trend, how strong is it, how long has it been running, is the ribbon compressing toward a breakout, and do higher timeframes agree.
🔹 CORE CONCEPT
Three exponential moving averages — fast (8), mid (21), and slow (55) — form a visual ribbon on the chart. When the EMAs stack in order (fast > mid > slow), the trend is bullish. When they invert, the trend is bearish. Anything else is a transitional state labeled neutral.
The ribbon is more than directional. The distance between the fastest and slowest EMA (the "spread") measures trend strength as a percentage, and the rate at which the ribbon expands or contracts reveals momentum shifts before price confirms them.
🔹 WHAT MAKES THIS DIFFERENT
Most EMA ribbons stop at direction and color. This indicator adds four analytical layers that standard ribbons lack:
▸ Ribbon Squeeze Detection
The indicator continuously measures ribbon width against its own moving average. When the three EMAs converge below a configurable threshold (default: 30% of average width), the ribbon turns yellow and the dashboard flags an active squeeze. Compression precedes expansion — a squeeze ending often marks the start of a directional move. Dedicated markers appear on the chart when a squeeze releases into a bullish or bearish trend.
▸ Composite Momentum Score (0–100)
A single number synthesizing four components, each weighted equally at 25 points:
— EMA alignment: full bullish or bearish stack scores 25, mixed scores 0
— Slope agreement: all three EMAs rising or all falling scores 25, partial agreement scores 12
— Spread strength: scaled between 0–25 based on where the current spread falls relative to the user-defined weak and strong thresholds
— Price position: price above the ribbon in a bullish trend (or below in bearish) scores 25, inside the ribbon scores 10, on the wrong side scores 0
The score is color-coded: cyan (80+), teal (60–79), orange (40–59), red (below 40).
▸ Dynamic Slope-Adaptive Colors
When enabled, each EMA line independently changes color based on its own slope — rising EMAs render green, falling EMAs render red. This provides an early visual warning when individual EMAs begin to flatten or turn, even while the overall stack remains intact. A bullish stack where the slow EMA has turned red is a qualitatively different signal than one where all three are green.
▸ Multi-Timeframe Dashboard
A built-in table displays trend state, spread, and grade across five timeframes simultaneously: the current chart timeframe plus 15-minute, 1-hour, 4-hour, and daily. The active chart timeframe is marked with ► in the MTF rows if it matches one of the fixed timeframes. A confluence row at the bottom counts how many timeframes are bullish versus bearish and outputs a directional bias: Strong Bull (4–5 aligned), Bull Lean (3), Neutral (mixed), Bear Lean (3 bearish), or Strong Bear (4–5 bearish).
🔹 CROSSOVER SIGNAL HIERARCHY
Not all EMA crossovers carry equal weight. The indicator differentiates three tiers with distinct marker sizes and shapes:
▸ Fast × Mid (tiny triangles) — Early signal. The 8 EMA crossing the 21 EMA indicates short-term momentum shift. Frequent, noisy, best used as an alert rather than a trigger.
▸ Fast × Slow (standard triangles) — Confirmation signal. The 8 EMA crossing the 55 EMA has more significance and filters out minor pullbacks.
▸ Mid × Slow (diamonds) — Trend shift signal. The 21 EMA crossing the 55 EMA typically marks a genuine change in trend direction. This is the least frequent and most reliable crossover in the set.
All crossover markers can be toggled off independently.
🔹 DASHBOARD COMPONENTS
The top-right dashboard (position and size adjustable) contains:
Row 1 — TREND: Current trend state (▲ Bullish / ▼ Bearish / ◆ Neutral) with bar count showing how long the trend has been active.
Row 2 — ZONE: Where price sits relative to the ribbon (Above / Inside / Below) alongside the momentum score out of 100.
Row 3 — SQUEEZE: Active squeeze status with a visual strength bar (██████░░░░) showing current spread intensity relative to its recent range.
Rows 4–9 — MTF OVERVIEW: Trend, spread, and grade for the current chart, 15m, 1H, 4H, and 1D timeframes.
Row 10 — BIAS: Multi-timeframe confluence verdict with bull/bear count.
🔹 SETTINGS
EMA Settings
▸ Fast / Mid / Slow EMA Period — Default 8/21/55. Periods must be in ascending order.
▸ Source — Close, Open, High, Low, HL2, HLC3, or OHLC4.
Overlay Settings
▸ Background Transparency — Controls the intensity of the trend-colored chart background (0–99).
▸ Crossover Signals — Toggle the three-tier crossover markers.
▸ Ribbon Fill — Toggle the colored fill between EMA lines. Fill turns yellow during active squeeze.
▸ Dynamic EMA Colors — Toggle slope-based EMA coloring (green = rising, red = falling).
▸ Bar Coloring — Optional candle coloring by trend state and price position. Off by default.
▸ Squeeze Detection — Toggle squeeze markers and dashboard squeeze status.
Dashboard
▸ Table Size — Tiny, Small, Normal, or Large.
▸ Table Position — 8 positions (corners, centers, sides).
Thresholds
▸ Weak/Strong spread thresholds (%) — Define what constitutes a weak, moderate, or strong trend spread. These should be adjusted per asset class (e.g., lower for forex, higher for crypto).
▸ Squeeze Lookback — Number of bars used to calculate the average ribbon width for squeeze detection.
▸ Squeeze Ratio — The compression threshold. A ribbon narrower than this ratio × average width triggers a squeeze flag.
🔹 ALERTS
Nine configurable alert conditions:
▸ Bullish / Bearish EMA Crossover (any tier)
▸ Mid × Slow Bullish / Bearish Shift
▸ Bullish / Bearish Stack Formed
▸ Squeeze Detected (compression begins)
▸ Squeeze Released (expansion starts)
▸ High Momentum (score crosses above 80)
🔹 SUGGESTED USE
This indicator works as a trend filter, not a standalone entry signal. Use it to:
▸ Confirm directional bias across timeframes before entering trades
▸ Identify compression phases where breakouts are likely
▸ Gauge trend quality and exhaustion via the momentum score and bar duration
▸ Filter crossover signals — a Fast × Mid cross during an active squeeze with MTF confluence is a higher-probability setup than the same cross in isolation
Pairs well with oscillators (RSI, Stochastic), volume-based indicators, or support/resistance tools for entry timing. Indicateur
Chart Narrator [verticetrading]An analyst that writes. Chart Narrator reads your chart and describes it in plain sentences — no cryptic numbers, no jargon.
◆ WHAT IT DOES
It turns the chart into a written briefing: main trend and whether the higher timeframe agrees, unusual calm or agitation in volatility, the last structural break in plain words, nearest tested support/resistance with distances in %, fresh candlestick patterns, and volume participation. Everything is summarized in a bias header with a conviction score ("BULLISH — 4 of 5 signals point the same way").
◆ HOW IT WORKS
Six evidence modules (trend + higher-timeframe confirmation, volatility ranking, market structure, merged pivot levels weighted by touches, candlestick patterns, volume vs its average) each produce a verdict and the numbers behind it. A narration engine turns them into sentences, stays silent when a module has nothing to say, and detects confluences between modules (e.g. a bullish pattern printed on a tested support) to flag higher-quality situations. With enough history it also adds a day-of-week tendency note with its sample size.
◆ HOW TO USE IT
Add it to any symbol and timeframe. Read the panel top to bottom: bias first, evidence after. Set the "Bias flip" alert to receive the full written analysis when the overall picture changes. Interface in English and Spanish.
◆ WHAT MAKES IT ORIGINAL
Indicators show numbers; this one explains itself. Every sentence cites its evidence, only confirmed bars are narrated (no repainting), and the panel says "mixed, no clear edge" when that is the truth.
◆ LIMITATIONS
It describes the present; it does not predict. Not financial advice.
────────────────────────
ESPAÑOL — El analista que escribe
Convierte el gráfico en un informe escrito: tendencia y si la temporalidad mayor la confirma, calma o agitación inusual de la volatilidad, la última ruptura estructural en palabras llanas, soporte/resistencia más cercanos con distancias en %, patrones de velas recientes y participación del volumen — todo resumido en un sesgo con puntuación de convicción ("ALCISTA — 4 de 5 señales apuntan en la misma dirección"). Seis módulos de evidencia alimentan un motor de redacción que calla cuando no hay nada que decir y detecta confluencias entre señales. Solo narra velas confirmadas (sin repintado). Interfaz en inglés y español. Describe el presente, no predice; no es asesoramiento financiero. Indicateur
BBI Dynamic Deviation Bands [William_wq] 这是一个什么样的指标？
简单来说，这是一个 “自带安全边界的趋势导航仪” 。
它把交易者最常用的四条不同周期的均线（超短期、短期、中期、长期）融合在一起，提炼出一条最敏锐的 多空分水岭（BBI主线） 。
为了防止大家在交易中“追高被套”或“抄底抄在半山腰”，我在这条主线的上下两侧，加上了 两层会动态变宽变窄的“安全气道”（波动通道） 。这就像是给价格装上了防撞护栏，一眼就能看出价格是处于“正常散步状态”还是“跑得太快快要累死了”。
---
这个指标怎么用？
使用这个指标非常简单，只需要看懂 颜色和位置 ：
1. 看颜色认方向（顺势而为）
绿色通道：代表目前是安全的多头（上涨）趋势。
红色通道：代表目前是危险的空头（下跌）趋势。
顺势原则：绿色只买不卖，红色只卖不买。
2. 看位置找机会（买卖点定位）
回调买入点（顺势上车）：
当大趋势 是绿色 时，价格每次跌回中间的“BBI主线”或者“1.0倍下轨”附近，只要跌不下去，就是极佳的“顺势买入”机会。
极端预警点（落袋为安/反转提防）：
价格是有弹性的，不可能一直涨。当价格猛烈冲出最外层的 “2.0倍外轨”时，说明多头跑得太累了，这时候 千万不要去追高 ，反而应该考虑分批止盈，或者等待行情反转。
---
这个指标适合在哪里用？
适用的市场：
不管是 数字货币（BTC/ETH）、外汇黄金、还是美股/A股 ，只要有波动、有趋势的市场，它都能提供非常清晰的参考。
适用的时间周期：
日线 / 4小时线（中长线）：适合上班族，用来过滤市场噪音，稳稳地抓住一波主升浪。
5分钟 / 5分钟（超短线/日内）：适合职业交易员，用来捕捉当天价格波动的极端高低点，进行快速的高抛低吸。
---
交易员寄语
“交易不仅要看清方向，更要看清价格所处的位置。”
希望这个工具能成为您交易系统里的得力助手。指标虽好，但也请配合好您的资金管理和止损纪律，祝大家交易顺利！
---
What kind of indicator is this?
Simply put, this is a "trend navigator with its own safety margins" .
It merges four moving averages of different periods most commonly used by traders (ultra-short, short, medium, and long-term) into one, extracting the most sensitive bull/bear dividing line (the BBI main line) .
To prevent everyone from "getting trapped by chasing highs" or "buying the bottom halfway down the hill," I have added two layers of "safety air cushions" (volatility channels) that dynamically widen and narrow on both sides of this main line. This is like installing crash barriers for the price, making it easy to see at a glance whether the price is "walking normally" or "running too fast and about to exhaust itself."
---
How to use this indicator?
Using this indicator is very simple—you only need to understand the colors and positions :
1. Look at the color to identify the direction (Go with the trend)
Green channel: Represents a safe bullish (upward) trend.
Red channel: Represents a dangerous bearish (downward) trend.
Trend principle: Only buy and do not sell in green; only sell and do not buy in red.
2. Look at the position to find opportunities (Pinpointing entry and exit points)
Pullback buying point (Hop on the trend):
When the major trend is green , every time the price drops back near the middle "BBI main line" or the "1.0x lower band," as long as it holds, it is an excellent opportunity for a "trend-following purchase."
Extreme warning point (Take profit / Beware of reversal):
Price is elastic and cannot rise forever. When the price violently breaks out of the outermost "2.0x outer band," it means the bulls are running too tired. At this time, do not chase the high under any circumstances ; instead, you should consider taking profits in batches or waiting for a trend reversal.
---
Where is this indicator suitable for use?
Applicable markets:
Whether it is cryptocurrencies (BTC/ETH), forex and gold, or US stocks / A-shares , as long as it is a market with volatility and trends, it can provide very clear references.
Applicable timeframes:
Daily / 4-hour chart (medium to long-term): Suitable for office workers to filter out market noise and steadily catch a major rising wave.
15-minute / 5-minute chart (scalping / intraday): Suitable for professional traders to capture the extreme highs and lows of the day's price fluctuations for quick buying low and selling high.
---
Trader's Message
"Trading is not just about seeing the direction clearly, but more importantly, seeing the position where the price is located."
I hope this tool can become a powerful assistant in your trading system. Although the indicator is great, please also coordinate it with your capital management and stop-loss discipline. Wish everyone successful trading! Indicateur
Median Cascade Trend [BackQuant]Median Cascade Trend
Overview
Median Cascade Trend is a noise-resistant trend-following indicator that combines multiple causal median filters , an Ehlers-style two-pole Super Smoother , and a configurable chop-gating system .
Its purpose is to identify meaningful directional structure while rejecting the types of price movement that frequently cause conventional moving averages to whipsaw:
Single-bar spikes
Short-lived price shocks
Irregular wicks
Low-efficiency sideways movement
Weak slopes that do not represent genuine directional progress
The indicator processes price in three distinct stages:
A median-filter cascade removes impulsive and short-duration noise.
A two-pole low-pass filter smooths the remaining structural signal.
A chop gate decides whether a change in direction is strong enough to update the active trend state.
This creates a trend line that is intentionally more selective than a standard moving average. The line itself can continue evolving, but trend-state changes are only accepted when the underlying movement passes the chosen quality tests.
The result is a system that separates:
The estimated trend line
The raw direction of that line
The confirmed trend regime
That distinction is important. The indicator does not assume that every small turn in a smoothed line represents a valid trend reversal.
Core idea
Most trend filters are built around linear averaging. They combine historical prices using fixed or exponentially decaying weights.
Examples include:
SMA
EMA
WMA
HMA
DEMA
These filters are effective for general smoothing, but they have a weakness: a single extreme observation can influence the output immediately.
If one bar produces a large wick or temporary price shock, a moving average will usually be pulled toward that value because it includes the magnitude of every observation.
A median filter behaves differently.
Instead of averaging the values inside a window, it sorts them and selects the middle observation. This makes it highly resistant to isolated extremes.
Median Cascade Trend uses this property repeatedly before applying traditional low-pass smoothing.
The central idea is:
Remove impulsive noise first.
Smooth the cleaned signal second.
Confirm direction only when the movement is efficient or sufficiently steep.
This ordering is deliberate. Smoothing a noisy series and filtering noise before smoothing are not the same thing.
Where median filtering comes from
Median filters are widely used in digital signal processing, image processing, and engineering.
One of their best-known applications is the removal of impulse noise , sometimes called salt-and-pepper noise in image processing.
Impulse noise consists of isolated extreme observations that are not representative of the surrounding signal.
In market data, comparable events include:
Temporary liquidity gaps
Single-bar stop runs
Erroneous prints
Sharp wick reversals
News spikes that immediately retrace
A linear smoother such as an SMA or EMA cannot distinguish between an important sustained move and an isolated outlier. Both are included according to their numerical magnitude.
A median filter is nonlinear. It selects the central-ranked value rather than calculating an arithmetic mean.
For example, consider five observations:
100
101
102
103
140
The average is:
109.2
The median is:
102
The isolated value at 140 significantly distorts the average but has almost no effect on the median.
This is why median filtering is especially useful when the objective is to preserve structural turns while rejecting isolated noise.
What makes a median filter nonlinear
A normal moving average can be represented as a weighted sum of its inputs.
A median filter cannot.
Its output depends on the ordering of observations, not their arithmetic combination. This makes it a nonlinear filter.
That has several important consequences:
Outliers have limited influence.
Edges and structural shifts can be preserved more cleanly.
The response is not equivalent to ordinary low-pass averaging.
The filter may hold a value until enough observations confirm a change.
In trading terms, the median filter often behaves more like a structural selector than a conventional average.
What “causal” means
The median stages in this indicator are causal.
A causal filter uses:
The current bar
Past bars
It does not use future observations.
This matters because many visually smooth filtering methods can only produce their best result by centering the calculation around the current point, which requires future data.
This script does not do that.
Every value is calculated from information available at that bar, making the filter suitable for live use.
Why use a cascade of median filters
A single median filter can remove isolated spikes, but noise does not always occur as one extreme bar.
It can appear as:
Two-bar shocks
Short bursts of alternating movement
Small clusters of irregular candles
Residual distortion left after the first filtering pass
A cascade applies multiple median stages sequentially:
Stage 1 processes the original source.
Stage 2 processes the output of Stage 1.
Stage 3 processes the output of Stage 2.
Each stage removes a different layer of short-duration instability.
The process is similar to progressively cleaning a signal:
The first stage removes obvious impulse noise.
The second stage removes remaining short-term irregularity.
The third stage produces a more stable structural series before low-pass smoothing.
Median Stage 1
The first median stage is intended to reject isolated one-bar disturbances.
With a short setting such as 3:
The filter remains responsive.
Single-bar spikes are strongly suppressed.
Most genuine multi-bar movement remains visible.
This is the most tactical stage.
Median Stage 2
The second stage receives an already-cleaned input.
Its role is to remove:
Short-duration residual noise
Small alternating movements
Irregularity that survived the first stage
A slightly longer setting such as 5 creates stronger structural consistency.
Median Stage 3
The third stage provides the final nonlinear cleaning pass.
With a longer setting such as 7:
The output becomes more stable.
Short-lived reversals are reduced.
Only more persistent changes are passed into the low-pass stage.
This is the most conservative median stage.
Cascade Stages input
The user can select how many median stages are active:
1 stage: fastest and most responsive
2 stages: balanced noise rejection
3 stages: strongest impulse-noise suppression
The unused stages are still calculated internally, but the selected stage determines which output is sent into the Super Smoother.
Why cascade instead of one very long median
Applying several shorter filters is not always equivalent to applying one very long median filter.
A long median window can:
Delay structural changes heavily
Flatten shorter trend legs
Become insensitive to local turns
A cascade allows the filtering process to be distributed across stages.
This provides greater control over:
How aggressively isolated noise is removed
How much short-duration movement survives
How smooth the final structural input becomes
It also lets users build a progression such as 3, 5, and 7 rather than applying one blunt window.
The low-pass stage
After the median cascade, the signal is passed into a two-pole Super Smoother .
The median cascade removes nonlinear impulse noise, but its output can still contain:
Small step changes
Residual high-frequency movement
Sharp transitions caused by median replacement
The Super Smoother converts that cleaned but potentially stepped series into a smoother trend line.
This creates a hybrid filtering system:
Nonlinear median filtering for outlier rejection
Recursive low-pass filtering for smooth trend extraction
These components solve different problems.
Where the Super Smoother comes from
The Super Smoother is associated with John F. Ehlers’ application of digital signal processing techniques to financial markets.
It is based on the behavior of a two-pole low-pass filter and is designed to suppress high-frequency components more effectively than many conventional moving averages.
Traditional moving averages are simple smoothers, but they are not necessarily optimized as frequency-selective filters.
The Super Smoother uses recursively calculated coefficients derived from:
Exponential decay
Trigonometric terms
A selected cutoff period
The objective is to reduce high-frequency market noise while retaining lower-frequency directional structure.
What a low-pass filter does
A low-pass filter allows slow-moving components of a signal to pass while reducing fast-moving components.
In market terms:
Slow components represent broader trend structure.
Fast components represent short-term noise, rapid oscillation, and microstructure disturbance.
The Low-Pass Length determines the separation.
Lower values:
Allow more short-term movement through.
React faster.
Produce more turns.
Higher values:
Reject more high-frequency movement.
Produce a smoother trend line.
Respond later to structural changes.
Why use a two-pole filter
The number of poles broadly describes the order and steepness of a filter.
A two-pole filter generally provides:
Stronger attenuation of high-frequency noise than a one-pole filter.
A smoother output.
A more defined frequency response.
It also uses prior filter outputs recursively, allowing substantial smoothing without requiring an extremely long direct averaging window.
The full signal-processing chain
The calculation can be understood as:
Raw price source
Median Stage 1
Optional Median Stage 2
Optional Median Stage 3
Two-pole Super Smoother
Direction measurement
Chop-quality validation
Persistent trend state
Each layer has a distinct purpose.
Median cascade
Rejects isolated and short-lived noise.
Super Smoother
Reduces the remaining high-frequency variation.
Direction logic
Determines whether the final line is rising or falling.
Chop gate
Determines whether that directional change is trustworthy enough to update the confirmed trend.
Trend direction calculation
The raw direction is determined by comparing the current trend line with its value several bars ago:
Bullish if trendLine > trendLine
Bearish if trendLine < trendLine
Neutral if equal
The Direction Lookback controls how much movement is required before the line is classified as rising or falling.
A one-bar comparison is extremely responsive but can detect tiny slope changes.
A longer comparison:
Measures movement across a wider interval.
Reduces sensitivity to one-bar flattening.
Produces more stable raw direction.
Raw trend versus confirmed trend
One of the most important design choices is that the script separates:
Raw trend
Confirmed trend
The raw trend reflects the current direction of the filtered line.
The confirmed trend is persistent and changes only when:
The raw trend points in a new direction.
The chop gate is open.
If the line turns but the gate is closed:
The active trend state remains unchanged.
The attempted flip can optionally be displayed as blocked.
This prevents every small line turn from immediately becoming a regime reversal.
Why a chop filter is needed
Even an advanced smoother can turn repeatedly during sideways markets.
Smoothing reduces noise, but it does not determine whether movement is:
Directional
Efficient
Large enough relative to volatility
A line can move upward and downward in a range while making almost no net progress.
The chop gate addresses this by evaluating two separate properties:
Directional efficiency
ATR-normalized slope
Efficiency Ratio
The first gate component measures how efficiently the trend line has moved over a selected window.
The calculation compares:
Net movement
Total movement
Net movement is:
|trendLine - trendLine |
Total movement is:
Sum of |bar-to-bar changes in trendLine|
The Efficiency Ratio is:
Efficiency = Net Movement / Total Movement
The result ranges approximately from 0 to 1.
Efficiency near 1
The line has moved mostly in one direction.
Example:
It advanced 10 units.
Its total path was approximately 11 units.
This indicates a clean directional move.
Efficiency near 0
The line has moved back and forth without achieving much net progress.
Example:
It travelled 20 units in total.
But ended only 1 unit from where it started.
This indicates chop.
Where the Efficiency Ratio comes from
The Efficiency Ratio is commonly associated with Perry Kaufman’s work on adaptive market analysis and the Kaufman Adaptive Moving Average.
Its purpose is to distinguish directional movement from noisy movement.
It does not measure the size of a move alone.
It measures the quality of the path.
This makes it highly suitable as a trend gate.
A market can be volatile but inefficient. It can move aggressively in both directions and still make little progress.
The Efficiency Ratio helps identify that distinction.
Minimum Efficiency
The Minimum Efficiency input determines the directional quality required for the efficiency condition to pass.
Lower values:
Allow more irregular movement.
Open the gate more frequently.
Produce earlier but noisier trend changes.
Higher values:
Require cleaner directional travel.
Block more sideways flips.
Produce fewer but more selective regime changes.
ATR-Normalized Slope
The second gate component measures how large the trend-line movement is relative to current market volatility.
It calculates:
|trendLine - trendLine | / ATR
This converts the line’s movement into ATR units.
Without normalization, a slope of 10 points could be:
Large for one instrument
Negligible for another
Large in a quiet regime
Small during extreme volatility
ATR normalization makes the slope more comparable across assets and regimes.
What normalized slope measures
The Efficiency Ratio asks:
Was the movement directionally clean?
ATR-normalized slope asks:
Was the movement large enough to matter?
These are different questions.
A move can be highly efficient but extremely small.
For example:
A perfectly smooth drift of only 0.02 ATR may not justify a new trend regime.
A move can also be large but inefficient:
A violent range may travel several ATRs while repeatedly reversing.
Using both filters gives a more complete view of trend quality.
Minimum ATR-Normalized Slope
The Minimum ATR-Normalized Slope defines the movement threshold.
Lower values:
Accept weaker slopes.
React sooner.
Allow more low-energy flips.
Higher values:
Require stronger displacement.
Reduce weak trend transitions.
Delay signals until movement becomes more meaningful.
Gate modes
The indicator provides four chop-gate modes.
Efficiency Ratio
Only directional efficiency is required.
Best suited for users who care primarily about whether movement is clean, regardless of its exact magnitude.
ATR-Normalized Slope
Only slope strength is required.
Best suited for users who want movement to exceed a volatility-adjusted threshold, even if the path is not perfectly efficient.
Both
Both conditions must pass:
Efficiency must be high enough.
Slope must be strong enough.
This is the strictest mode and generally provides the strongest chop rejection.
Either
Only one condition must pass.
This is more permissive:
A very clean slow trend may pass through efficiency.
A powerful but less orderly move may pass through slope.
It provides a balance between responsiveness and filtering.
Gate behavior
When the gate is open:
A new raw direction can update the trend state.
Bullish and bearish flips can be confirmed.
When the gate is closed:
The previous confirmed trend persists.
Attempted changes are blocked.
The display can dim, turn neutral, or hide.
This means the indicator behaves like a regime-holding system during chop.
It does not constantly reset to neutral. It retains the last confirmed direction until sufficient evidence supports a new one.
Blocked flips
A blocked flip occurs when:
The filtered line attempts to change direction.
The attempted direction differs from the confirmed trend.
The chop gate is closed.
The raw direction has just changed.
These can optionally be displayed as small X markers.
Blocked flips are useful because they show:
Where a basic slope indicator would have reversed.
Where the chop filter rejected that reversal.
How much signal noise the gate is removing.
They are not trade signals. They are diagnostic information.
Trend persistence
The trend variable is persistent.
Once bullish:
It remains bullish until a valid bearish change passes the gate.
Once bearish:
It remains bearish until a valid bullish change passes the gate.
This persistence is central to the design.
The indicator is not merely coloring every local slope. It is maintaining a confirmed market regime.
Display modes when the gate is closed
The indicator offers three ways to display gated conditions.
Dim
The current trend color remains visible but becomes transparent.
This communicates:
The last confirmed trend is still active.
Current conditions are not strong enough to confirm a new direction.
This is useful when you want regime continuity without overstating conviction.
Neutral
The trend line and candles switch to the selected gate color.
This communicates:
The directional regime is being withheld.
Current conditions are considered non-trending or uncertain.
Hide
The trend line disappears while the gate is closed.
This is the strictest visual mode.
It communicates:
No actionable trend state should be displayed during the gated condition.
Trend line coloring
The base color is determined by the confirmed trend:
Bullish trend uses the long color.
Bearish trend uses the short color.
Uninitialized state uses gray.
The gate display can then modify the final presentation.
This allows the chart to show:
Direction
Confirmation status
Chop-filter activity
without needing a separate panel.
Gradient fill
The indicator fills the area between price and the trend line.
When price is above the trend line:
A bullish gradient is displayed.
When price is below the trend line:
A bearish gradient is displayed.
The fill is stronger near the trend line and fades toward price.
This emphasizes the trend line as the structural reference.
The fill color follows the gate display state:
Full trend color when active
Dimmed during a closed gate in Dim mode
Neutral when configured
Hidden when the trend line is hidden
Trend glow
A soft glow is created around the filtered line using a small ATR-scaled distance.
The glow width is:
ATR(14) × 0.06
Using ATR ensures the glow remains visually proportional across assets and price scales.
The glow does not affect the calculation. It improves readability and reinforces the line as the central structural output.
Candle coloring
Candles can be colored using the confirmed trend state.
When the gate is open:
Bull trend produces bullish candles.
Bear trend produces bearish candles.
When the gate is closed:
Dim mode fades the existing trend color.
Neutral mode uses the gate color.
Hide mode removes the candle override.
This gives an immediate full-chart view of both trend and gate status.
Signal logic
Signals only occur when the confirmed trend changes.
Bullish flip
A bullish signal requires:
The active trend becomes bullish.
The previous trend was bearish.
The gate accepted the change.
Bearish flip
A bearish signal requires:
The active trend becomes bearish.
The previous trend was bullish.
The gate accepted the change.
This is more selective than simply detecting a change in line slope.
How to interpret the indicator
Bullish confirmed regime
A bullish regime means:
The median-filtered and low-pass-smoothed trend line is rising.
The move satisfied the selected chop-filter conditions when the regime changed.
The last accepted direction remains bullish.
Bearish confirmed regime
A bearish regime means:
The final trend line is falling.
The bearish change passed the selected quality gate.
The last accepted direction remains bearish.
Gate closed in an existing trend
This means:
The market is no longer moving with sufficient efficiency or slope.
A new reversal cannot currently be confirmed.
The previous regime remains stored.
This often occurs during:
Consolidation
Pullbacks
Low-volatility drift
Transition phases
Repeated blocked flips
Repeated blocked changes suggest:
The filtered line is oscillating.
Directional quality is weak.
A normal trend-following system would likely be whipsawing.
This is exactly the environment the gate is designed to avoid.
How to use it in practice
1. Directional regime filter
Use the confirmed trend to filter other setups:
Favor long trades during bullish regimes.
Favor short trades during bearish regimes.
Reduce activity when the gate is closed.
2. Trend-following entries
Bullish and bearish flips can be used as directional entry triggers, especially when confirmed by:
Price structure
Breakouts
Volume expansion
Higher-timeframe alignment
3. Pullback framework
During an established trend:
Price returning toward the trend line may represent a pullback.
If the gate remains closed but the trend does not flip, the move may be consolidation rather than reversal.
If the opposite direction eventually passes the gate, the regime has changed more meaningfully.
4. Chop avoidance
The most direct use is avoiding repeated entries during low-quality conditions.
When the display is dim, neutral, or hidden:
Reduce confidence in new trend signals.
Wait for efficiency or slope to recover.
5. Diagnostic comparison
Enable blocked flips to see how often the raw trend attempts to reverse without confirmation.
This helps tune:
Efficiency threshold
Slope threshold
Gate mode
Input guide
Source
Selects the price series used by the median cascade.
Close is the standard choice.
Alternatives such as hl2 or hlc3 may produce a slightly smoother structural input.
Cascade Stages
Controls how many median filters are used.
1: responsive
2: balanced
3: strongest noise rejection
Median Stage Lengths
Control the window used at each stage.
Shorter values:
Preserve responsiveness.
Remove only very short-duration noise.
Longer values:
Produce stronger structural filtering.
Delay shorter turns.
Low-Pass Length
Controls the two-pole Super Smoother.
Lower:
Faster
More reactive
Higher:
Smoother
More conservative
Direction Lookback
Controls how far back the current line is compared when determining raw direction.
Lower:
Faster slope changes
Higher:
More stable directional measurement
Efficiency Length
Controls the window used to measure net movement versus total path movement.
Shorter:
More responsive efficiency reading
More sensitive to recent chop
Longer:
More stable directional-quality assessment
Minimum Efficiency
Controls how clean the directional path must be.
Higher values make the gate stricter.
Slope Length
Controls the interval across which trend-line movement is measured.
Slope ATR Length
Controls the ATR baseline used to normalize slope.
Minimum ATR-Normalized Slope
Controls the minimum volatility-adjusted displacement required.
Higher values require stronger movement.
Tuning examples
Faster trend configuration
1 or 2 median stages
Short median windows
Lower Super Smoother length
Direction Lookback of 1 or 2
Either gate mode
Lower efficiency and slope thresholds
Balanced configuration
2 or 3 median stages
Progressive windows such as 3, 5, 7
Moderate Super Smoother length
Both gate mode
Moderate thresholds
Conservative configuration
3 stages
Longer median windows
Higher Super Smoother length
Longer Direction Lookback
Both gate mode
Higher minimum efficiency and slope
How this differs from a normal moving average
A standard moving average:
Uses linear averaging.
Responds directly to outlier magnitude.
Changes direction whenever its slope changes.
Median Cascade Trend:
Uses nonlinear outlier-resistant preprocessing.
Applies a proper recursive low-pass stage.
Separates raw direction from confirmed regime.
Blocks changes during inefficient or weak movement.
How this differs from a normal median filter
A basic median filter only removes impulse noise.
This indicator extends the idea by adding:
Multiple median stages
Low-pass smoothing
Direction measurement
Efficiency gating
Volatility-normalized slope gating
Persistent trend states
Signals and alerts
It is not simply a median-smoothed line. It is a complete trend-regime system built on median preprocessing.
How this differs from a Supertrend
A Supertrend uses ATR bands around price and changes state when price crosses the trailing boundary.
Median Cascade Trend does not use a volatility band to define direction.
Instead:
Direction comes from the slope of the filtered trend line.
ATR is used only to normalize slope and scale visuals.
Trend changes are controlled by movement quality rather than price crossing a stop band.
Strengths
Strong rejection of isolated price spikes
Preserves broader structural movement
Combines nonlinear and linear filtering
Separates raw turns from confirmed trend changes
Configurable chop rejection
Volatility-normalized slope testing
Persistent directional regimes
Blocked-flip diagnostics
Fully causal calculation
Limitations
Strong filtering can delay genuine reversals.
Long median windows may suppress shorter trend legs.
Strict gate settings can hold the previous regime too long.
Loose gate settings reduce the benefit of chop filtering.
Median filters can produce stepped transitions before low-pass smoothing.
The indicator remains reactive rather than predictive.
Best use cases
Median Cascade Trend is particularly suited for:
Trend filtering in noisy markets
Reducing false reversals caused by wicks
Swing-trading regime identification
Filtering entries from faster systems
Dynamic trend-structure visualization
Avoiding sideways-market whipsaws
It can be applied across:
Equities
Indices
Futures
Forex
Cryptocurrency
Commodities
Alerts
The indicator provides alerts for:
Confirmed bullish trend changes
Confirmed bearish trend changes
Trend changes blocked by the chop filter
The blocked-flip alert is especially useful for monitoring when the line attempts to reverse but market quality remains insufficient.
Summary
Median Cascade Trend is a multi-stage trend extraction system designed to reject impulsive market noise before determining direction. It first applies up to three causal median filters, progressively removing isolated spikes and short-duration disturbances. The cleaned series is then passed through a two-pole Super Smoother to extract a stable low-frequency trend line.
Rather than accepting every change in slope, the indicator evaluates the quality of the movement using directional efficiency and ATR-normalized slope. Depending on the selected gate mode, trend changes can require clean directional travel, sufficient volatility-adjusted displacement, or both.
This produces a persistent trend state that changes only when the filtered line turns and the surrounding movement is strong enough to justify the reversal. The final result is a robust trend-following framework that combines outlier rejection, low-pass smoothing, directional-quality measurement, and chop suppression into a single overlay.
Indicateur
NIMBUS [ThrowMaster]NIMBUS — Ichimoku, Reimagined
Classic Ichimoku is brilliant at one question: "Where is the market right now — above, below, or inside equilibrium?" It is far weaker at a second question every trader actually asks: "What is the market about to do?" NIMBUS keeps the timeless Ichimoku framework intact and adds three dimensions built to close that gap — while staying, above all, honest about what it is: a context compass, not a signal service.
━━━━━━━━━━━━━━━━━━━━━━━━
WHAT NIMBUS ADDS
━━━━━━━━━━━━━━━━━━━━━━━━
⭐ Kumo Calendar — Twist Countdown
Here is a fact most traders overlook: the cloud in front of price is already fully drawn. It is built entirely from bars that have ALREADY closed, then shifted forward. That means the next Kumo twist — the moment Senkou Span A and B swap places — is knowable in advance. NIMBUS scans the forward cloud and counts the exact number of bars until that twist reaches price, and warns you when a thin (weak-support) section is approaching. Ichimoku's most-criticised trait, its lag, becomes a schedule you can read ahead of time.
🩵 Breath — Volume-Reactive Cloud
A traditional cloud shows only price geometry; two identical-looking clouds can hide wildly different conviction. NIMBUS makes the cloud breathe: it grows more solid on high-participation bars and fainter on quiet ones, using a rolling volume percentile. Strength becomes something you feel at a glance, not something you have to calculate. (If a symbol reports no volume, the cloud simply falls back to a fixed opacity — no errors, no false readings.)
🎯 Tenkan / Kijun Cross Clarity
The Tenkan–Kijun cross is one of Ichimoku's core events, yet on most charts it hides in a tangle of lines. NIMBUS marks it precisely: a teal circle at the exact price and bar of a bullish cross, coral for bearish. No hunting, no guessing.
◈ Alignment Hints
When four independent Ichimoku dimensions agree — price vs cloud, Tenkan vs Kijun, cloud colour, and the lagging read — AND price reclaims or loses the cloud on a confirmed bar, NIMBUS prints a small diamond. Think of it as a puzzle-game hint: a nudge to look at the right place at the right time. It is deliberately NOT a buy or sell command, and it never gives a target.
━━━━━━━━━━━━━━━━━━━━━━━━
HOW IT WORKS
━━━━━━━━━━━━━━━━━━━━━━━━
NIMBUS uses the standard Ichimoku engine — Tenkan (9), Kijun (26), Senkou Span A/B, and the lagging span, all fully adjustable. "Price vs cloud" always compares price to the cloud value formed 25 bars ago — the cloud actually sitting beneath price — so the reading reflects real, settled structure. The Breath layer reads a 100-bar volume percentile. The Twist Countdown walks the already-shifted forward cloud bar by bar. The dashboard summarises everything in one compact, theme-aware panel with a mobile Compact Mode.
━━━━━━━━━━━━━━━━━━━━━━━━
HOW TO USE
━━━━━━━━━━━━━━━━━━━━━━━━
• Read the cloud for trend context: above = bullish structure, below = bearish, inside = balance/chop.
• Watch the Twist Countdown to anticipate when the cloud's support/resistance character is about to flip — useful for planning, not for firing blind.
• Let Breath tell you whether a move carries participation or is running on fumes.
• Treat Hints as a reason to zoom in and do your own analysis, never as an instruction.
• Combine with your own risk management. NIMBUS describes context; your plan decides the trade.
━━━━━━━━━━━━━━━━━━━━━━━━
ON REPAINTING (honest)
━━━━━━━━━━━━━━━━━━━━━━━━
Once a bar closes, every Tenkan/Kijun/Span value is fixed and never redrawn. Hints and cross circles are all confirmed on bar close, so a printed mark cannot later disappear. The forward cloud is built only from closed bars, so it is fixed the moment it appears. Like all Ichimoku tools, values on the CURRENT, still-forming bar update in real time until that bar closes — this is inherent to the framework, not hidden repainting, and it is documented directly in the code comments.
━━━━━━━━━━━━━━━━━━━━━━━━
WHAT MAKES IT ORIGINAL
━━━━━━━━━━━━━━━━━━━━━━━━
NIMBUS is not another line pack bolted onto Ichimoku. The Kumo Calendar reframes the forward cloud as a countdown rather than a static shape; Breath encodes participation into the cloud's opacity; and the whole tool is presented as an explicit, self-aware CONTEXT instrument — it tells you what the market is, and refuses to pretend it knows your trade. The code is fully open for you to read, study, and learn from.
━━━━━━━━━━━━━━━━━━━━━━━━
NOTE
━━━━━━━━━━━━━━━━━━━━━━━━
No indicator predicts the future or guarantees results, and NIMBUS makes no such claim. It is a decision-support and context tool. Markets involve risk; always use independent judgement and sound risk management. Not financial advice.
Indicateur
True RSITrue RSI | MisinkoMaster
The True RSI is a sophisticated reimagining of classical momentum. While the standard Relative Strength Index has served as a cornerstone of technical analysis for decades, it possesses a fundamental limitation: it treats all price movements equally, regardless of the time elapsed since the market made its last major peak or trough. The True RSI solves this structural blind spot by merging price magnitude with temporal trend strength, weighting gains and losses according to their cyclical maturity.
By dynamically scaling price changes against the time-distance of local extremes, this indicator filters out lateral market noise, reduces false overbought and oversold readings during strong trends, and delivers highly responsive execution signals.
How It Works (The Core Architecture)
Instead of relying solely on arithmetic averages of upward and downward price closes, True RSI filters raw market data through a multi-dimensional momentum matrix:
Temporal Trend Weighting: The algorithm continuously tracks how recently the market has formed local highs and lows. Gains are mathematically weighted against the strength of the upward cycle, while losses are weighted against the strength of the downward cycle.
Cycle-Weighted Ratio: The accumulated, time-weighted gains and losses are calculated over your lookback period to establish a true relative strength ratio. If gains occur during an actively surging upward cycle, they are heavily amplified; if they occur during a dying trend, they are heavily discounted.
Smoothing and Normalization: This ratio is translated into a normalized scale bounded between 0 and 100, providing an incredibly smooth yet responsive oscillator curve alongside a secondary momentum velocity histogram.
Key Features
Time-Weighted Velocity: True RSI prevents premature exhaustion signals during strong, healthy trends because it understands the cyclical age of the current market move.
On-Chart Candle Morphing: The system automatically tracks the oscillator state and alters the colors of your main price bars to keep you visually aligned with the macro trend.
Overlay Execution Labels: Prints pristine Long and Short labels directly on your price pane the moment the underlying structural momentum shifts past your designated thresholds.
Internal Divergence Histogram: Built directly behind the main oscillator is a custom acceleration histogram that monitors the rate of change of the index, pinpointing hidden momentum shifts before they reflect in the price.
Input Parameters & Optimization Guide
Lookback Period: Controls the baseline window for both the cycle-strength calculations and the price change evaluations. A default of 21 bars balances macro trend stability with immediate short-term utility.
Long / Short Thresholds: The structural boundaries that dictate trend shifts. By default, crossing above 50 signals a bullish regime, while dropping below 50 initiates a bearish regime.
Overbought / Oversold Thresholds: Tailored extremes designed to isolate true premium and discount zones. The default 80 and 20 boundaries act as high-probability mean-reversion targets.
Trading Strategies & Execution
Trend Regime Shift
When momentum builds structural backing, the indicator updates its trend state:
A crossing of the True RSI above the Long Threshold triggers a green Long label on the chart, changing candle colors to vibrant green.
A crossing of the True RSI below the Short Threshold triggers a pink Short label, shifting candle colors to pink.
Exhaustion Reversals
Because price movement is weighted against cycle time, entering the overbought (80) or oversold (20) zones represents a market that is genuinely overstretched both in terms of price velocity and time. Reversals from these zones carry high statistical significance for counter-trend scalps or trailing-stop targets.
Acceleration Divergences
Watch the central histogram centered around the 50 line. When the price is grinding flat but the histogram starts to rise or fall aggressively, it shows that the internal speed of the True RSI is accelerating. This hidden momentum often foreshadows explosive breakout expansions.
Disclaimer: Trading financial markets involves high risk. This technical script is designed as an informational analytical tool to support your rule-based mechanical execution system and does not constitute financial advice. Indicateur
ANDROMEDA MTF - TrendSyncThis script is a Multi-Timeframe (MTF) trend-following system designed to capture pullbacks in direction of the primary trend.
Rather than relying on a single indicator, ANDROMEDA MTF utilizes a specific mashup of Moving Averages, MACD, and RSI to establish a robust rule-based logic. The primary goal of combining these tools is to filter out lower-timeframe market noise and only authorize entries when momentum and structural trend are perfectly aligned on a higher timeframe.
⚙️ CORE MECHANICS (The Mashup Logic):
To avoid false signals during choppy markets, the script requires three distinct conditions to agree on the Higher Timeframe (MTF) before defining a trend:
Baseline Trend Structure: Uses two customizable Moving Averages (EMA or SMA). The fast MA must be above/below the slow MA to indicate directional bias.
Momentum Confirmation (Slope): The algorithm calculates the mathematical slope of the slow MA (MA - MA ). The trend is only validated if the slow MA is actively sloping in the trade direction, preventing entries in flat/consolidating markets.
Volume/Momentum Filter: The MACD Histogram must confirm the bias (Histogram > 0 for longs, < 0 for shorts).
🎯 ENTRY TRIGGERS & VISUAL FILTERS:
The Pullback Trigger: Once the Higher Timeframe establishes a firm trend (Blue for Bullish, Red for Bearish), the script monitors the local timeframe. A Buy/Sell signal is generated exactly when the local price pulls back and crosses the MTF Moving Averages, offering a discounted entry in the direction of the macro trend.
Exhaustion Filter (RSI): A fast RSI operates in the background. It overrides the candle colors (turning them orange by default) to visually warn the trader that the asset has reached overbought/oversold extremes, cautioning against late entries.
🛠️ HOW TO USE:
Apply the indicator to your execution timeframe (e.g., 15m) and set the MTF parameter in the settings to your macro directional timeframe (e.g., 240 for 4H). Wait for the trend lines to turn Blue/Red and enter on the printed signal arrows during pullbacks.
🇧🇷 (PORTUGUÊS)
Este script é um sistema seguidor de tendência Multi-Timeframe (MTF) projetado para capturar pullbacks na direção da tendência primária.
⚙️ COMO FUNCIONA (A Lógica):
Para evitar sinais falsos, o script exige que 3 condições concordem no Tempo Gráfico Maior (MTF) antes de definir a tendência:
Estrutura: Duas médias móveis (EMA/SMA). A rápida deve estar alinhada com a lenta.
Momento (Inclinação): O algoritmo calcula a inclinação matemática da média lenta. A tendência só é validada se a média estiver apontando para a direção da operação.
Filtro MACD: O Histograma do MACD deve confirmar o fluxo (Maior que zero para compras).
🎯 GATILHOS E FILTROS VISUAIS:
Gatilho: Quando o tempo gráfico maior estabelece a tendência (Azul para Alta, Vermelho para Baixa), o script gera o sinal de entrada no momento em que o preço atual faz um pullback e toca as médias móveis do tempo gráfico maior.
Filtro de Exaustão (RSI): Um RSI rápido colore os candles de laranja para avisar visualmente que o ativo chegou a uma zona de sobrecompra/sobrevenda, evitando que você entre muito tarde no movimento.
COMO USAR: Adicione o indicador no seu gráfico de execução (ex: M15) e configure o parâmetro MTF no menu para o seu gráfico de referência (ex: 240 para H4). Aguarde as médias ficarem azuis ou vermelhas e opere os sinais de seta a favor da co Indicateur
Trend-Reset Cumulative Delta [ChartPrime]Trend-Reset Cumulative Delta
🔶 OVERVIEW
Standard Cumulative Delta indicators track the net difference between buying and selling volume from a fixed starting point (like the start of the day). While useful, they often become skewed by historical data that is no longer relevant to the current market trend.
The Trend-Reset Cumulative Delta solves this by using a Volatility-Based Reset Mechanism . It utilizes an ATR (Average True Range) envelope to define the current trend; the moment price breaks out of this envelope, the Cumulative Delta "resets." This ensures you are only seeing the volume pressure relevant to the active trend.
🔶 THE RESET LOGIC: ATR BANDS
The indicator tracks a central EMA surrounded by volatility bands. This creates a "dynamic corridor" for price:
Bullish Trend: When price closes above the Upper ATR Band , the trend turns bullish and the Delta counter resets to 0.
Bearish Trend: When price closes below the Lower ATR Band , the trend turns bearish and the Delta counter resets to 0.
By resetting at every major trend shift, the indicator highlights the "fresh" volume entering the move, making it easier to spot exhaustion or trend strength without the baggage of old data.
🔶 KEY FEATURES
Z-Score Pivot Filter: Not all pivots are equal. This indicator uses a Z-Score calculation to identify "outlier" volume events. It highlights pivots where the Cumulative Delta is significantly higher (statistically) than the recent average.
Trend Summary Labels: At the end of every trend cycle, a label appears summarizing the Total Volume and Net Delta of that specific move. This allows you to compare the "effort vs. result" of previous trends side-by-side.
Dual-Chart Projection: Filtered volume pivots can be projected directly onto the price chart, showing you exactly which candle saw a statistical volume extreme.
Dynamic Column Coloring:
* Bright Colors: Volume is increasing in the direction of the trend.
* Faded Colors: Volume pressure is slowing down (potential divergence/exhaustion).
🔶 TRADING APPLICATIONS
Effort vs. Result (Divergence): If price is making new trend highs but the Trend-Reset Delta columns are becoming smaller or fading in color, it indicates that the "effort" (volume) is not supporting the move.
Institutional Absorption: Look for the Z-Score Pivot markers (▼/▲). When these appear at structural support or resistance, it signifies that a massive amount of volume was transacted, often indicating institutional absorption.
Trend Strength Comparison: Use the Trend Summary Labels to look back at previous cycles. If the previous Bullish trend had a Net Delta of +1M and the current Bullish trend only has +200k, the current move is significantly more fragile.
🔶 CONCLUSION
The Trend-Reset Cumulative Delta provides a cleaner, more actionable view of volume flow. By stripping away irrelevant historical volume and focusing on the current volatility-defined trend, it helps traders identify when a trend is being fueled by fresh capital—or when it's simply running on fumes. Indicateur
Custom Built IndicatorCustom Built Indicator | MisinkoMaster
Trading is often viewed as a purely mathematical or technical discipline, but the truth is that successful trading requires immense creativity. There are thousands of brilliant traders who have incredible, unique structural concepts in their minds but feel held back because they do not know how to write code. The Custom Built Indicator (CBI) was created to bridge that gap.
This indicator acts as a blank, programmable canvas designed to unlock your inner quantitative designer. It is a fully modular trading framework that allows you to build, test, and personalize your own technical systems without touching a single line of code. By giving you absolute control over the baseline foundation, the volatility wrapper, the smoothing layer, and the conditional trend logic, CBI makes algorithmic design accessible to everyone. Think of it as trading art—a sandbox where you can bring your most detailed visual concepts to life, spark your curiosity, and perhaps even inspire you to take your first steps into learning Pine Script development.
How It Works: The Modular Sandbox
Instead of trapping you inside a single, rigid formula, CBI breaks down technical analysis into five independent, hot-swapping algorithmic layers:
Baseline Settings: This establishes the gravitational core of your asset's price action. You can set this baseline using standard moving averages, advanced low-lag options, mathematical centerpoints like the median or statistical mode, or even a pure historical price offset.
Volatility Settings: This dictates how your system measures market expansion and compression. You can wrap your baseline using standard range tools, pure standard deviation, or robust absolute deviation models to map out precise market extremes.
Smoothing Settings: A unique layer that allows you to smooth out the upper and lower boundary bands independently of the central baseline. Applying secondary smoothing allows you to create highly tailored, fluid bands that conform uniquely to market noise.
Trend Logic Settings: The brain of your strategy. Here, you decide exactly what constitutes a market regime shift. You can define trend conditions based on price breaking the outer channels, crossing the baseline, or even pure momentum acceleration.
Confirmation Filters: To minimize false signals, you can apply secondary algorithmic checks—such as volume verification, rate of change agreement, or candle validation—before any structural trend shift is confirmed.
An Ocean of Creative Possibilities
To understand just how massive this sandbox is, we can calculate the exact number of unique logical setups available. If we completely ignore all numerical values (like lookback periods or band multipliers) and only look at the dropdown menus, the sheer volume of structural combinations is staggering:
Baseline Type: 11 options
Volatility Type: 5 options
Upper Band Smoothing Type: 11 options
Lower Band Smoothing Type: 11 options
Long Signal Logic: 3 options
Short Signal Logic: 3 options
Confirmation Type: 4 options
The Custom Built Indicator provides exactly 239,580 unique, without numerical inputs, meaning everyone will have a completely unique layout that fits them and their style.
When you factor in that the crossover and crossunder source inputs can also be independently assigned to any price data point, the mathematical possibilities soar into the millions. Every single trader can find, name, and perfect a structural footprint that is entirely their own.
Key System Features
On-Chart Canvas Synchronization: The system automatically tracks your custom logical state and dynamically projects it back onto the screen, shifting candle colors and painting custom visual envelopes to represent your unique market regime.
Asymmetric Modeling: Because the upper and lower multipliers and smoothing options are completely separated, you can build asymmetric strategies—such as tight, highly sensitive upper boundaries for fast momentum breakouts combined with wide, volatile lower boundaries to catch major macroscopic market drops.
Forward-Looking Integration: The conditional logic allows you to experiment with advanced structural confirmations, such as requiring two consecutive breakout bars or demanding expanding volume before confirming a trend pivot.
Input Parameters Layout
General & Baseline Settings
Source: The primary price feed running into your system core.
Baseline Type & Lookback: Chooses the foundational trend line, offering options ranging from traditional SMA, EMA, and WMA, to advanced zero-lag options like TEMA, HMA, ALMA, or statistical Mode and Median.
Volatility & Smoothing Settings
Volatility Type & Lookback: Defines the range measurement matrix (Average True Range, Median True Range, Standard Deviation, Mean Absolute Deviation, or Median Absolute Deviation).
Upper & Lower Multipliers: Independently scales the distance of the bands from the baseline.
Additional Smoothing Type & Lookback: Provides an extra filtering pass specifically for the outer bands to eliminate jagged lines and smooth out execution zones.
Trend Logic Settings
Crossover/Crossunder Source: Selects the specific price sources required to breach the upper and lower boundaries.
Long/Short Signal Logic: Sets the core activation condition (breaking bands, crossing the baseline, or tracking positive/negative rate of change).
Confirmation Type: Applies an optional secondary validation layer (Volume, Baseline ROC, or Extra Bar validation).
Embrace the Art of Strategy Design
The ultimate goal of the Custom Built Indicator is to prove that technical analysis doesn't have to be rigid or intimidating. It is a playground for your ideas. Load it onto your chart, test out your most unconventional theories, mix architectures that traditional packages keep separate, and discover what works for your unique visual style. If you find a combination that speaks to you, use that spark to look under the hood—because the journey from clicking options to writing your own custom scripts is much shorter than you think.
Disclaimer: Trading financial markets involves high risk. This technical script is designed as an educational and informational tool to support your rule-based mechanical execution system and does not constitute financial advice.
Final Note: If you find any bugs, errors, contact me either through DMs or in the comments, and I will fix them and update the script. Indicateur
Relative Strength (RS) - Mansfield StyleRelative Strength (RS) measures how a symbol performs against a chosen
benchmark. Instead of plotting the raw price ratio — whose scale differs
from one symbol to another and makes comparison difficult — this script
normalizes the ratio (symbol close / benchmark close) against its own
simple moving average over a configurable lookback "Period". The result
is a zero-centered line that reads the same way on any symbol:
- RS above 0 and rising → the asset is outperforming the benchmark
- RS below 0 and falling → the asset is underperforming
- Zero-line crossings → shifts in relative leadership
Only the direction and the position relative to zero matter, not the
absolute value.
█ HOW IT WORKS
1. The script requests the benchmark's close on the selected timeframe.
2. It computes the raw ratio: symbol close / benchmark close.
3. The ratio is divided by its SMA over the "Period" lookback, minus 1 —
expressing how far the current relative strength stands above or
below its recent average.
4. An optional moving average of RS can be displayed as a signal line.
█ INPUTS
- Comparative Symbol: the benchmark (an index such as SPX, a sector
index, or any peer symbol — e.g. compare gold against silver).
- Period (default 50): normalization lookback. Shorter = more reactive,
longer = smoother and slower.
- Show Moving Average / Moving Average Period: optional smoothing line.
- Timeframe: leave empty to use the chart's timeframe, or select a
higher timeframe for multi-timeframe analysis.
█ HOW TO USE
Apply the indicator to any symbol. When RS holds above zero, the asset
is leading its benchmark — favor it for relative-strength strategies
(buy strength). When RS holds below zero, the asset is lagging — avoid
it or rotate out. Zero-line crossovers flag early changes in relative
leadership, and two built-in alerts fire on these crossings.
RS is a relative tool, not a timing tool: an asset can outperform a
falling benchmark while still declining in absolute terms. Combine it
with your own trend or entry criteria.
█ CREDITS
The normalization method follows the Mansfield Relative Strength
concept popularized by Stan Weinstein in "Secrets for Profiting in
Bull and Bear Markets".
█ NOTE ON HIGHER TIMEFRAMES
When a higher timeframe is selected in the Timeframe input, the value
of the current forming bar updates until that bar closes. Historical
values do not repaint. Indicateur
Nadaraya-Watson Trend [QuantAlgo]🟢 Overview
The Nadaraya-Watson Trend indicator estimates a smooth, adaptive trend path by applying non-parametric kernel regression directly to price. For each bar it weights historical values inside a configurable lookback window with a chosen kernel function, normalizes those weights, and returns a single endpoint estimate that forms the plotted trend line. Bandwidth and kernel type control how aggressively recent bars dominate the estimate, optional residual bands express how far price is dispersed around that path, and slope based coloring with reversal markers make direction and turning points readable at a glance across any timeframe or instrument.
🟢 How It Works
The indicator is built around a one sided Nadaraya-Watson (NW) estimator: only the current bar and past bars enter the calculation, so the path behaves as a causal smoother rather than a centered, repainting fit. The pipeline has three stages: kernel weighting over the lookback window, normalized regression into a single trend value, and optional residual band construction from the same estimate.
First, effective bandwidth is formed from the configured bandwidth and multiplier. Each lag distance is then mapped to a kernel weight. Gaussian and Rational Quadratic keep infinite support with different decay shapes. Compact kernels (Epanechnikov, Triangular, Quartic, Cosine) only assign weight while the normalized lag stays inside the unit interval:
kernel_weight(float dist, float h, string ktype, float rq) =>
float w = 0.0
if h > 0.0
float u = dist / h
if ktype == 'Gaussian'
w := math.exp(-(dist * dist) / (2.0 * h * h))
else if ktype == 'Rational Quadratic'
w := math.pow(1.0 + (dist * dist) / (2.0 * rq * h * h), -rq)
else if math.abs(u) <= 1.0
if ktype == 'Epanechnikov'
w := 0.75 * (1.0 - u * u)
else if ktype == 'Triangular'
w := 1.0 - math.abs(u)
else if ktype == 'Quartic'
w := (15.0 / 16.0) * math.pow(1.0 - u * u, 2.0)
else if ktype == 'Cosine'
w := (math.pi / 4.0) * math.cos(math.pi * u / 2.0)
w
float h = bandwidth * h_mult
Next, the Nadaraya-Watson path is computed as the normalized weighted average of the selected source across the lookback window. Nearer bars dominate when bandwidth is low. Weight spreads more evenly when bandwidth is high, producing a smoother path:
float sum_w = 0.0
float sum_p = 0.0
for i = 0 to lookback
float w = kernel_weight(i, h, kernel_type, rel_weight)
sum_w += w
sum_p += src * w
float nw_trend = sum_w != 0.0 ? sum_p / sum_w : na
Finally, residual bands can be drawn from a kernel weighted mean absolute residual of the source versus the current NW estimate, scaled by the band multiplier. When price is tightly clustered around the path the envelope contracts. When price is dispersed the envelope expands, framing extension and compression relative to the same estimator that defines the trend:
float sum_abs = 0.0
float sum_res_w = 0.0
for i = 0 to lookback
float w = kernel_weight(i, h, kernel_type, rel_weight)
if w > 0.0 and not na(src ) and not na(nw_trend)
sum_abs += w * math.abs(src - nw_trend)
sum_res_w += w
float residual = sum_res_w != 0.0 ? sum_abs / sum_res_w : na
float upper = not na(nw_trend) and not na(residual) ? nw_trend + residual * band_mult : na
float lower = not na(nw_trend) and not na(residual) ? nw_trend - residual * band_mult : na
🟢 Signal Interpretation
▶ Bullish Path (Rising NW Line with Bullish Color): When the Nadaraya-Watson estimate is increasing bar to bar, the path and optional gradient fill plot in the bullish color, reading as an uptrend in the kernel smoothed series. Treat this as a long bias: strongest on the reversal marker with price holding above the path, or on pullbacks that respect the path while slope stays up. Bias weakens if price loses the path and the slope flattens or flips down.
▶ Bearish Path (Falling NW Line with Bearish Color): When the estimate is decreasing bar to bar, the path and fill plot in the bearish color, reading as a downtrend in the kernel smoothed series. Treat this as a short bias: strongest on the reversal marker with price holding below the path, or on bounces that fail at the path while slope stays down. Bias weakens if price reclaims the path and the slope flattens or flips up.
▶ Residual Bands (Optional Envelope Around the Path): With residual bands enabled, the upper and lower lines track a scaled kernel weighted residual around the NW path. Touches or closes beyond the outer band highlight price stretched away from the estimate. Returns toward the path after an extension often mark mean reversion relative to the kernel trend rather than a full regime change. Band width is derived from how widely the source has been scattered around the current NW estimate inside the lookback window
🟢 Features
▶ Preconfigured Presets: Three parameter sets tuned for different trading styles and timeframes. "Default" delivers balanced trend estimation for swing trading on 1H to daily charts, smoothing short lived noise while still responding to genuine directional turns. "Fast Response" is built for intraday work on 5 minute to 1H charts, keeping the path tighter to recent structure so turns register earlier at the cost of more frequent reversals in chop. "Smooth Trend" is aimed at position style reading on daily and weekly charts, forming a more stable baseline that flips only when the kernel path itself shifts with more conviction. Kernel type, residual bands, and visual options stay independently configurable under every preset.
▶ Kernel Library: Six kernel functions expand how the same endpoint Nadaraya-Watson framework assigns weight across the window. Gaussian is the classic smooth default with infinite support. Epanechnikov, Triangular, Quartic, and Cosine are compact kernels that fully exclude bars beyond the bandwidth scale. Rational Quadratic keeps infinite support with heavier tails, and its Relative Weighting input controls how much influence farther bars retain versus a Gaussian like decay. Switching kernels changes the shape of the single plotted path without adding a second model or external oscillator.
▶ Residual Bands: Optional envelope around the NW path built from kernel weighted mean absolute residuals of the source versus the estimate, scaled by Band Multiplier. Enable when you want extension and compression context around the same trend line. Disable when you want only the path, gradient, and markers.
▶ Built-in Alerts: Five alert conditions support hands off monitoring. "Bullish Kernel Reversal" fires on the bar the path slope flips from down to up. "Bearish Kernel Reversal" fires on the bar the path slope flips from up to down. "Any Kernel Reversal" fires on either directional flip. "Source Cross Above Upper Band" and "Source Cross Below Lower Band" fire when the selected source crosses the residual envelope extremes. Alert messages include exchange, ticker, and timeframe for immediate context.
▶ Visual Customisation: Six color presets (Classic, Aqua, Cosmic, Cyber, Neon, and Custom) apply coordinated bullish and bearish colors to the path, gradient fill, residual bands, markers, optional bar coloring, and optional background coloring. Custom unlocks independent bullish and bearish color pickers. Gradient fill, residual bands, reversal markers, bar coloring, and background coloring can each be toggled so the chart stays as clean or as expressive as the workflow requires.
Indicateur
